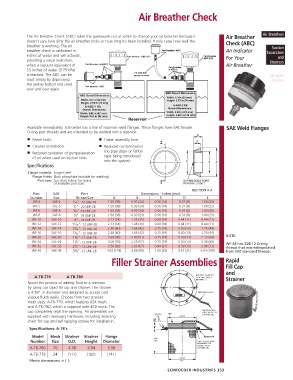

Air Breather Check

The Air Breather Check (ABC) takes the guesswork out of when to change your air breather because it Air Breather Air Breathers
doesn’t care how dirty the air breather looks or how long it’s been installed. It only cares how well the Check (ABC)
breather is working. The air Suction
breather check is calibrated in An Indicator Separators
inches of water and will activate, For Your and
providing a visual indication, Strainers
when a vacuum equivalent of Air Breather
15 inches of water (3.75 kPa)
is reached. The ABC can be Oil Sight
reset simply by depressing Glasses
the yellow button and used
over and over again.

Available immediately, Schroeder has a line of reservoir weld flanges. These flanges have SAE female SAE Weld Flanges
O-ring port threads and are intended to be welded into a reservoir.
■ Fewer leaks ■ Faster assembly time
■ Cleaner installation ■ Reduced contamination
■ Reduced cavitation of pumps/aeration (no pipe dope or Teflon
of oil when used on suction lines tape being introduced
into the system)
Specifications
Flange material: Forged steel
Flange finish: Black phosphate (suitable for welding)
Port sizes: See chart below for listing
of available port sizes
Part SAE Port Dimensions - inches (mm)
Number Size Thread Size A B C D E
WF-4 SAE-4 7 ⁄16"- 20 UNF-2B 1.50 (38) 0.93 (24) 0.56 (14) 0.31 (8) 1.00 (25)
WF-5 SAE-5 1 ⁄2"- 20 UNF-2B 1.50 (38) 0.93 (24) 0.56 (14) 0.31 (8) 1.00 (25)
WF-6 SAE-6 9 ⁄16"-18 UNF-2B 1.50 (38) 0.93 (24) 0.56 (14) 0.31 (8) 1.00 (25)
WF-8 SAE-8 3 ⁄4"- 16 UNF-2B 1.50 (38) 0.93 (24) 0.56 (14) 0.31 (8) 1.00 (25)
WF-10 SAE-10 7 ⁄8"- 14 UNF-2B 2.13 (54) 1.38 (35) 0.69 (18) 0.44 (11) 0.44 (11)
WF-12 SAE-12 1 ⁄16"- 12 UNF-2B 2.13 (54) 1.38 (35) 0.69 (18) 0.44 (11) 0.44 (11)
1
WF-14 SAE-14 1 ⁄16"- 12 UNF-2B 2.38 (60) 1.66 (42) 0.75 (19) 0.50 (13) 1.75 (44)
3
WF-16 SAE-16 1 ⁄16"- 12 UNF-2B 2.38 (60) 1.66 (42) 0.75 (19) 0.50 (13) 1.75 (44)
5
WF-20 SAE-20 1 ⁄8"- 12 UNF-2B 2.69 (68) 2.00 (51) 0.75 (19) 0.50 (13) 2.13 (54) NOTE:
5
7
WF-24 SAE-24 1 ⁄8"- 12 UNF-2B 3.00 (76) 2.25 (57) 0.75 (19) 0.50 (13) 2.38 (60) WF-48 has 33⁄8-12 O-ring
1
WF-32 SAE-32 2 ⁄2"- 12 UNF-2B 3.50 (89) 2.63 (67) 0.84 (21) 0.59 (15) 2.88 (73) thread that was extrapolated
WF-48 SAE-48 3 ⁄8"- 12 UNF-2B 4.63 (118) 3.66 (93) 1.00 (25) 0.81 (21) 3.94 (100) from SAE standard threads
3
Filler Strainer Assemblies Rapid
Fill Cap
and
A-TB-779 A-TB-780 Strainer
Speed the process of adding fluid to a reservoir
by using our rapid fill cap and strainer. The strainer
is 4.38" in diameter and designed to accept cold
viscous fluids easily. Choose from two strainer
mesh sizes: A-TB-779, which features #24 mesh,
and A-TB-780, which is supplied with #70 mesh. The
cap completely seals the opening. All assemblies are
supplied with necessary hardware, including retaining
chain for cap and self tapping screws for installation.
Specifications: A-TB’s
Model Mesh Strainer Strainer Flange
Number Size O.D. Height Diameter
A-TB-780 70 4.38 3.94 5.56
A-TB-779 24 (111) (100) (141)
Metric dimensions in ( ).

SCHROEDER INDUSTRIES 353
