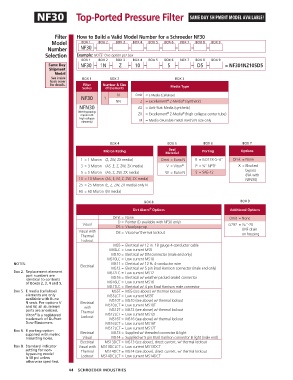

Page 46 - Schroeder - Hydraulic And Lube Filtration

NF30 Top-Ported Pressure Filter SAME DAY SHIPMENT MODEL AVAILABLE!

Filter How to Build a Valid Model Number for a Schroeder NF30
Model BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9
Number NF30 – – – – – – – –
Selection Example: NOTE: One option per box
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9
Same Day NF30 – 1N – Z – 10 – – S – – D5 – = NF301NZ10SD5
Shipment
Model
See inside BOX 1 BOX 2 BOX 3
back cover
for details. Filter Number & Size
Series of Elements Media Type
N Omit = E Media (Cellulose)
NF30 1
NN Z = Excellement Z-Media (synthetic)
®
®
NFN30 AS = Anti-Stat Media (synthetic)
(Non-bypassing: ® ®
requires ZX ZX = Excellement Z-Media (high collapse center tube)
high collapse
elements) M = Media (reusable metal mesh) N size only

BOX 4 BOX 5 BOX 6 BOX 7
Seal
Micron Rating Material Porting Options
1 = 1 Micron (Z, ZW, ZX media) Omit = Buna N B = ISO228 G- ⁄4" Omit = None
3
3 = 3 Micron (AS ,E, Z, ZW, ZX media) V = Viton ® P = ⁄4" NPTF X = Blocked
3
5 = 5 Micron (AS, Z, ZW, ZX media) W = Buna N S = SAE-12 bypass
(NA with
10 = 10 Micron (AS, E, M, Z, ZW, ZX media) NFN30)
25 = 25 Micron (E, Z, ZW, ZX media) only N
60 = 60 Micron (M media)

BOX 8 BOX 9
®
Dirt Alarm Options Additional Options
Omit = None Omit = None
D = Pointer (D available with NF30 only)
Visual G792 = ⁄16"-20
7
D5 = Visual pop-up
Visual with D8 = Visual w/ thermal lockout UNF drain
Thermal on housing
Lockout
MS5 = Electrical w/ 12 in. 18 gauge 4-conductor cable
MS5LC = Low current MS5
MS10 = Electrical w/ DIN connector (male end only)
MS10LC = Low current MS10
NOTES: MS11 = Electrical w/ 12 ft. 4-conductor wire
Electrical MS12 = Electrical w/ 5 pin Brad Harrison connector (male end only)
Box 2. Replacement element MS12LC = Low current MS12
part numbers are MS16 = Electrical w/ weather-packed sealed connector
identical to contents
of Boxes 2, 3, 4 and 5. MS16LC = Low current MS16
MS17LC = Electrical w/ 4 pin Brad Harrison male connector
Box 5. E media (cellulose) MS5T = MS5 (see above) w/ thermal lockout
elements are only MS5LCT = Low current MS5T
available with Buna MS10T = MS10 (see above) w/ thermal lockout
N seals. For options V Electrical
and W, all aluminum with MS10LCT = Low current MS10T
parts are anodized. Thermal MS12T = MS12 (see above) w/ thermal lockout
®
Viton is a registered Lockout MS12LCT = Low current MS12T
trademark of DuPont MS16T = MS16 (see above) w/ thermal lockout
Dow Elastomers. MS16LCT = Low current MS16T
MS17LCT = Low current MS17T
Box 6. B porting option
supplied with metric Electrical MS13 = Supplied w/ threaded connector & light
mounting holes. Visual MS14 = Supplied w/ 5 pin Brad Harrison connector & light (male end)
Electrical MS13DCT = MS13 (see above), direct current, w/ thermal lockout
Box 8. Standard indicator Visual with MS13DCLCT = Low current MS13DCT
setting for non- Thermal MS14DCT = MS14 (see above), direct current, w/ thermal lockout
bypassing model Lockout MS14DCLCT = Low current MS14DCT
is 50 psi unless
otherwise specified.
44 SCHROEDER INDUSTRIES
