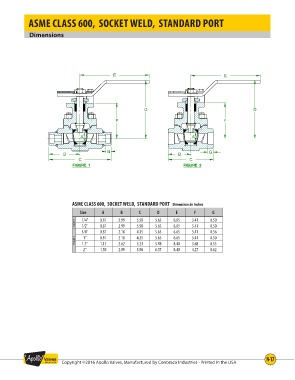

Page 17 - Apollo - Top Entry Ball Valves

ASME CLASS 600, SOCKET WELD, STANDARD PORT

Dimensions

E E

D D

F F

A A

G G
B B
C C
FIGURE 1 FIGURE 2

ASME CLASS 600, SOCKET WELD, STANDARD PORT Dimensions in Inches
Size A B C D E F G
FIGURE 1 1/4” 0.81 2.99 5.98 5.63 6.65 3.41 0.50
6.65
5.63
3.41
2.99
0.50
1/2"
5.98
0.81
3/4" 0.81 2.18 4.35 5.63 6.65 3.41 0.56
1"
FIGURE 2 1.5" 0.81 2.18 4.35 5.63 6.65 3.41 0.50
0.55
8.40
3.68
2.62
1.17
5.98
5.23
2" 1.50 2.99 5.98 6.57 8.40 4.27 0.62

N-17
