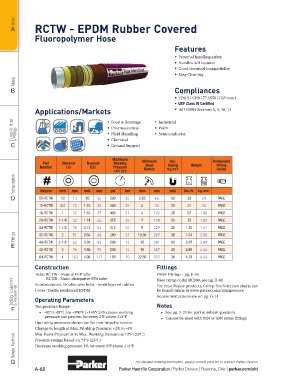

Page 108 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose
A RCTW - EPDM Rubber Covered
Fluoropolymer Hose

Features

ƒ Personal handling safety
ƒ Handles full vacuum
ƒ Good chemical compatibility
ƒ Easy Cleaning
Tubing
B Compliances

ƒ FDA 21 CFR 177.1550 (FEP core)
ƒ USP Class VI Certified
Applications/Markets ƒ ISO 10993 Sections 5, 6, 10, 11

Coiled Air Hose & Fittings ƒ Food & Beverage ƒ Industrial
ƒ Pharmaceutical
ƒ Paint
ƒ Semiconductor
ƒ Fluid Handling
C ƒ Chemical
ƒ Ground Support

Maximum
Part Nominal Nominal Working Minimum Vac. Permanent
Bend
Number I.D. O.D. Pressure Radius Rating Weight Fitting
Series
73˚F/ 23˚C Hg./73˚F
Transportation Natural inch mm inch mm psi bar inch mm inch lbs./ft. kg./mtr.
lbs

D 08-RCTW 1/2 13 .95 24 500 35 2.50 64 28 .33 .49 PAGE
12-RCTW 3/4 19 1.25 32 500 35 3 76 28 .51 .76 PAGE
16-RCTW 1 25 1.53 39 450 31 4 102 28 .67 1.00 PAGE
20-RCTW 1-1/4 32 1.74 44 375 26 7 178 28 .72 1.07 PAGE
24-RCTW 1-1/2 38 2.13 54 375 26 9 229 28 1.10 1.51 PAGE
Fittings 32-RCTW 2 51 2.68 68 280 21 10.50 267 28 1.54 2.28 PAGE
E 40-RCTW 2-1/2 64 3.28 84 200 14 15 381 28 2.07 3.09 PAGE
48-RCTW 3 76 3.88 99 200 14 18 457 28 2.99 4.46 PAGE
64-RCTW 4 102 4.98 127 150 10 22.50 572 28 4.33 6.46 PAGE
Construction Fittings
Tube: RCTW - Natural FEP tube PAGE Fittings – pg. E-45
RCTB - Static-dissipative PFA tube
Tooling, Equipment & Accessories Reinforcement: Double wire helix - multi layered rubber For most Parker products, Crimp Die Selection charts can
Uses crimp collar RC300, see pg. E-46
be found online at www.parker.com/crimpsource
Cover: Textile reinforced EPDM
Access instructions are on pg. G-14
Operating Parameters
F Temperature Range: Notes
• -40°F(-40°C ) to +300°F (+149°C) Decrease working • See pg. A-21 for part numbering system
pressure one percent for every 2°F above 212°F • Cannot be used with 91N or 93N series fittings
Operating pressures shown are for non-impulse service
Change in length at Max. Working Pressure: +2% to -4%
Min. Burst Pressure is 4x Max. Working Pressure at 73°F (23°C)
General Technical Pressure ratings based on 73°F (23°C)
Decrease working pressure 1% for every 2°F above 212°F

G For detailed ordering information, please consult price list or contact Parflex Division.
A-82 Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd
