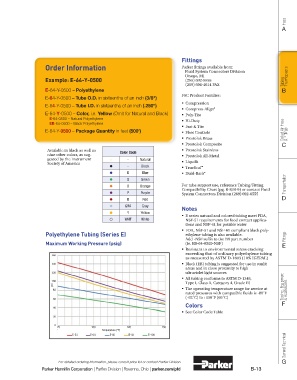

Page 125 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose
A

Fittings
Order Information Parker fittings available from:
Fluid System Connectors Division
Otsego, MI Thermoplastic
Example: E-64-Y-0500 (269) 692-6555
(269) 694-4614 FAX Tubing
E-64-Y-0500 – Polyethylene B
E-64-Y-0500 – Tube O.D. in sixteenths of an inch (3/8") FSC Product Families:
E-64-Y-0500 – Tube I.D. in sixteenths of an inch (.250") ƒ Compression
ƒ Compress-Align®
E-64-Y-0500 – Color, i.e. Yellow (Omit for Natural and Black) ƒ Poly-Tite
E-64-0500 – Natural Polyethylene ƒ Hi-Duty
EB-64-0500 – Black Polyethylene
ƒ Fast & Tite
E-64-Y-0500 – Package Quantity in feet (500') ƒ Flow Controls Coiled Air Hose
ƒ Prestolok Brass & Fittings
ƒ Prestolok Composite C
Available in black as well as Color Code ƒ Prestolok Stainless
nine other colors, as sug- ƒ Prestolok All-Metal
gested by the Instrument - Natural
Society of America ƒ Liquifit
- Black ƒ TrueSeal™
B Blue ƒ Dubl-Barb®
G Green
O Orange For tube support use, reference Tubing/Fitting Transportation
Compatibility Chart (pg. B-8/B-9) or contact Fluid
P Purple System Connectors Division (269) 692-6555
R Red D
GRA Gray Notes
Y Yellow
ƒ E series natural and colored tubing meet FDA,
WHT White NSF-51 requirements for food contact applica-
tions and NSF-61 for potable water
ƒ FDA, NSF-51 and NSF-61 compliant black poly-
Polyethylene Tubing (Series E) ethylene tubing is also available.
Add -NSF suffix to the EB part number Fittings
Maximum Working Pressure (psig) (ie. EB-64-0500-NSF) E
ƒ Resistant to environmental stress cracking
160 exceeding that of ordinary polyethylene tubing
as measured by ASTM D-1693 (10% IGEPAL)
140 ƒ Black (EB) tubing is suggested for use in sunlit
areas and in close proximity to high
120 ultraviolet light sources
ƒ All tubing conforms to ASTM D-1248,
100 Type I, Class A, Category 4, Grade E5
psi Tooling, Equipment
80 ƒ The operating temperature range for service at & Accessories
rated pressures with compatible fluids is -80˚F
(-62˚C) to +150˚F (66˚C)
60
Colors F
40
ƒ See Color Code Table
20
0
75 100 125 150
Temperature (°F)
General Technical
E-53 E-64 E-86 E-43 E-108

For detailed ordering information, please consult price list or contact Parflex Division. G
Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd B-13
