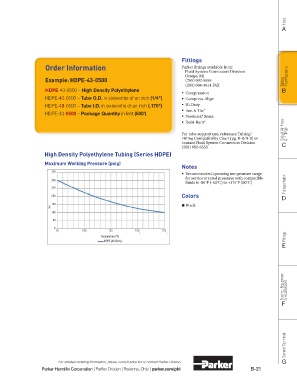

Page 133 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose
A

Fittings
Order Information Parker fittings available from:
Fluid System Connectors Division
Otsego, MI Thermoplastic
Example: HDPE-43-0500 (269) 692-6555 Tubing
(269) 694-4614 FAX
HDPE-43-0500 – High Density Polyethylene B
ƒ Compression
HDPE-43-0500 – Tube O.D. in sixteenths of an inch (1/4") ƒ Compress-Align
HDPE-43-0500 – Tube I.D. in sixteenths of an inch (.170") ƒ Hi-Duty
ƒ Fast & Tite®
HDPE-43-0500 – Package Quantity in feet (500')
ƒ Prestolok® Brass
ƒ Dubl-Barb®

For tube support use, reference Tubing/ Coiled Air Hose & Fittings
Fitting Compatibility Chart (pg. B-8/B-9) or
contact Fluid System Connectors Division C
(269) 692-6555
High Density Polyethylene Tubing (Series HDPE)
Maximum Working Pressure (psig)
Notes
350
ƒ Recommended operating temperature range
for service at rated pressures with compatible
300
fluids is -80°F (-62°C) to +175°F (80°C) Transportation
250
Colors
200 D
150 Black
psi
100
50
0
75 100 125 150 175
Temperature (°F) Fittings
HDPE (All Sizes)
E

Tooling, Equipment & Accessories

F

General Technical

For detailed ordering information, please consult price list or contact Parflex Division. G
Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd B-21
