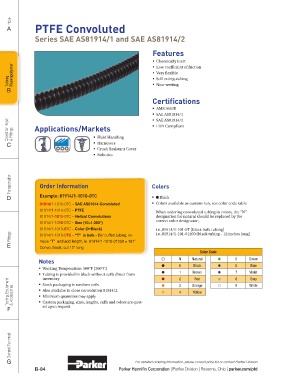

Page 196 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose
A PTFE Convoluted

Series SAE AS81914/1 and SAE AS81914/2

Features

ƒ Chemically inert
ƒ Low coefficient of friction
Tubing Fluoropolymer ƒ Very flexible
ƒ Self extinguishing
ƒ Non-wetting
B

Certifications
ƒ AMS 3653E
ƒ SAE AS81914/1
Coiled Air Hose & Fittings Applications/Markets ƒ FDA Compliant
ƒ SAE AS81914/2

ƒ Harnesses
C ƒ Fluid Handling
ƒ Crush Resistant Cover
ƒ Robotics

Transportation Order Information Colors

D Example: 81914/1-1010-0TC ƒ Black
81914/1-1010-0TC – SAE AS81914 Convoluted ƒ Colors available as custom run, see color code table

81914/1-1010-0TC – PTFE When ordering convoluted tubing in colors, the “N”
81914/1-1010-0TC – Helical Convolutions designation for natural should be replaced by the
81914/1-1010-0TC – Size (10=1.000") correct color designator;

81914/1-1010-0TC – Color (0=Black) i.e.,81914/1-101-0T (black bulk tubing)
Fittings 81914/1-1010-0TC – “T” is bulk - (for cuffed tubing, re- i.e.,81914/1-101-01200 (black tubing - 12 inches long)
E move “T” and add length, ie. 81914/1-1010-01200 = 187"
Convo, black, cut 12" long
Color Code
Notes N Natural 5 Green
ƒ Working Temperature: 500°F (260°C) 0 Black 6 Blue
ƒ Tubing is provided in black without cuffs direct from 1 2 Brown 7 8 Violet
inventory
Red
Gray
Tooling, Equipment & Accessories ƒ Stock packaging is random coils 3 4 Orange 9 White
ƒ Also availabe in close convolution 81914/2
Yellow
ƒ Minimum quantities may apply
ed upon request
F ƒ Custom packaging, sizes, lengths, cuffs and colors are quot-

General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
