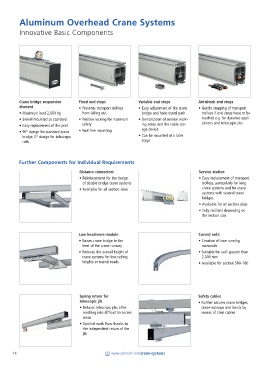

Aluminum Overhead Crane Systems

Innovative Basic Components

Crane bridge suspension Fixed end stops Variable end stops Antishock end stops
element • Prevents transport trolleys • Easy adjustment of the crane • Gentle stopping of transport
• Maximum load 2,000 kg from falling out bridge and hoist travel path trolleys if end stops have to be
• Swivel mounted as standard • Positive locking for maximum • Demarcation of several work- reached e.g. for dynamic appli-
• Easy replacement of the joint safety ing areas and the cable stor- cations and telescopic jibs
• 90° design for standard crane • Tool free mounting age device
bridge; 0° design for telescopic • Can be mounted at a later
rails stage

Further Components for Individual Requirements

Distance connectors Service station
• Reinforcement for the design • Easy replacement of transport
of double bridge crane systems trolleys, particularly for long
• Available for all section sizes crane systems and for crane
systems with several crane
bridges
• Available for all section sizes
• Fully resilient depending on
the section size

Low headroom module Curved radii
• Raises crane bridge to the • Creation of true running
level of the crane runway monorails
• Reduces the overall height of • Suitable for radii greater than
crane systems for low ceiling 2,000 mm
heights or transit roads • Available for section SRA-180

Spring return for Safety cables
telescopic jib • Further secures crane bridges,
• Returns telescopic jibs after crane runways and hoists by
reaching into difficult to access means of steel cables
areas
• Optimal work flow thanks to
the independent return of the
jib
