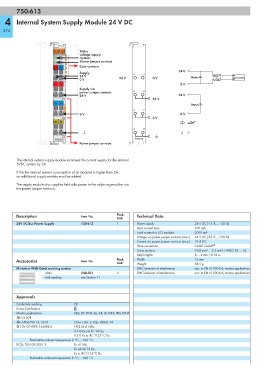

750-613

4 Internal System Supply Module 24 V DC

374

13 14 Status
voltage supply
A
C -System
B -Power jumper contacts
D
Data contacts
24V 0V
24 V
Supply
24 V 24 V 1 5 0 V Status DC I/O modules

0 V DC
+ + 0 V
Supply via
power jumper contacts 2 6

24 V 24 V
24 V
— —
Status
3 7

0 V 0 V
0 V
PE PE
4 8

750-613 750-613
Power jumper contacts

The internal system supply module increases the current supply for the internal
5VDC system by 2A.
If the the internal current consumption of all modules is higher than 2A,
an additional supply module must be added.

The supply module also supplies field side power to the adjoining modules via
the power jumper contacts.

Description Item No. Pack. Technical Data
Unit
24V DC Bus Power Supply 750-613 1 Power supply 24 V DC (-15 % ... +20 %)
Input current max. 500 mA
Total current for I/O modules 2000 mA
Voltage via power jumper contacts (max.) 24 V DC (-25 % ... +30 %)
Current via power jumper contacts (max.) 10 A DC
Wire connection CAGE CLAMP ®
Cross sections 0.08 mm² ... 2.5 mm² / AWG 28 ... 14
Strip lengths 8 ... 9 mm / 0.33 in
Accessories Item No. Pack. Width 12 mm
Unit Weight 58.5 g
Miniature WSB Quick marking system EMC immunity of interference acc. to EN 61000-6-2, marine applications
plain 248-501 5 EMC emission of interference acc. to EN 61000-6-4, marine applications
with marking see Section 11

Approvals
Conformity marking 1
Korea Certification
Marine applications ABS, BV, DNV, GL, KR, LR, NKK, PRS, RINA
r UL 508
r ANSI/ISA 12.12.01 Class I, Div. 2, Grp. ABCD, T4
4 TÜV 07 ATEX 554086 X I M2 Ex d I Mb,
II 3 G Ex nA IIC T4 Gc,
II 3 D Ex tc IIIC T135°C Dc
Permissible ambient temperature 0 °C ... +60 °C
IECEx TUN 09.0001 X Ex d I Mb,
Ex nA IIC T4 Gc,
Ex tc IIIC T135°C Dc
Permissible ambient temperature 0 °C ... +60 °C
