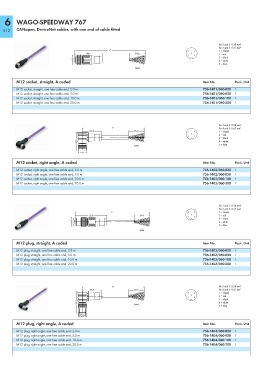

6 WAGO-SPEEDWAY 767

512 CANopen, DeviceNet cables, with one end of cable fitted

Pin 2 and 3: 0.38 mm²
Pin 4 and 5: 0.67 mm²
L* 3 4 1 = Shield
48,5 35±2 5 2 = red
2 1
3 = black
ø15 4 = white
5 = blue
(mm)
M12 socket, straight, A coded Item No. Pack. Unit
M12 socket, straight, one free cable end, 2.0 m 756-1401/060-020 1
M12 socket, straight, one free cable end, 5.0 m 756-1401/060-050 1
M12 socket, straight, one free cable end, 10.0 m 756-1401/060-100 1
M12 socket, straight, one free cable end, 20.0 m 756-1401/060-200 1

Pin 2 and 3: 0.38 mm²
L* Pin 4 and 5: 0.67 mm²
37,5 35±2 3 4 1 = Shield
5 2 = red
2 1
3 = black
28,5 4 = white
(mm) 5 = blue
ø15
M12 socket, right angle, A coded Item No. Pack. Unit

M12 socket, right angle, one free cable end, 2.0 m 756-1402/060-020 1
M12 socket, right angle, one free cable end, 5.0 m 756-1402/060-050 1
M12 socket, right angle, one free cable end, 10.0 m 756-1402/060-100 1
M12 socket, right angle, one free cable end, 20.0 m 756-1402/060-200 1

Pin 2 and 3: 0.38 mm²
Pin 4 and 5: 0.67 mm²
L* 4 3 1 = Shield
5
55,3 35±2 2 = red
1 2
3 = black
ø15 M12x1 4 = white
5 = blue
(mm)
M12 plug, straight, A coded Item No. Pack. Unit
M12 plug, straight, one free cable end, 2.0 m 756-1403/060-020 1
M12 plug, straight, one free cable end, 5.0 m 756-1403/060-050 1
M12 plug, straight, one free cable end, 10.0 m 756-1403/060-100 1
M12 plug, straight, one free cable end, 20.0 m 756-1403/060-200 1

L* Pin 2 and 3: 0.38 mm²
37,5 35±2 Pin 4 and 5: 0.67 mm²
4 3 1 = Shield
5 2 = red
1 2
3 = black
35,3 4 = white
(mm)
5 = blue
M12x1
ø15
M12 plug, right angle, A coded Item No. Pack. Unit
M12 plug, right angle, one free cable end, 2.0 m 756-1404/060-020 1
M12 plug, right angle, one free cable end, 5.0 m 756-1404/060-050 1
M12 plug, right angle, one free cable end, 10.0 m 756-1404/060-100 1
M12 plug, right angle, one free cable end, 20.0 m 756-1404/060-200 1
