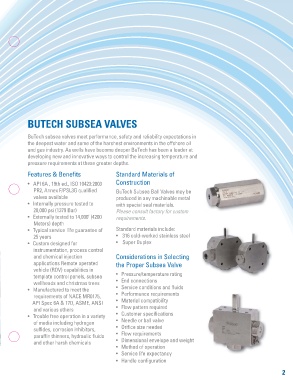

BUTECH SUBSEA VALVES

BuTech subsea valves meet performance, safety and reliability expectations in
the deepest water and some of the harshest environments in the offshore oil
and gas industry. As wells have become deeper BuTech has been a leader at
developing new and innovative ways to control the increasing temperature and
pressure requirements at these greater depths.
Features & Benefi ts Standard Materials of

• API 6A , 19th ed., ISO 10423:2003 Construction
PR2, Annex F/PSL3G qualifi ed BuTech Subsea Ball Valves may be
valves available produced in any machinable metal
• Internally pressure tested to with special seal materials.
20,000 psi (1379 Bar) Please consult factory for custom
• Externally tested to 14,000’ (4200 requirements.
Meters) depth
• Typical service life guarantee of Standard materials include:
25 years • 316 cold-worked stainless steel
• Custom designed for • Super Duplex
instrumentation, process control
and chemical injection Considerations in Selecting
applications Remote operated the Proper Subsea Valve
vehicle (ROV) capabilities in
template control panels, subsea • Pressure/temperature rating
wellheads and christmas trees • End connections
• Manufactured to meet the • Service conditions and fl uids
requirements of NACE MR0175, • Performance requirements
API Spec 6A & 17D, ASME, ANSI • Material compatibility
and various others • Flow pattern required
• Trouble free operation in a variety • Customer specifi cations
of media including hydrogen • Needle or ball valve
sulfi des, corrosion inhibitors, • Orifi ce size needed
paraffi n thinners, hydraulic fl uids • Flow requirements
and other harsh chemicals • Dimensional envelope and weight
• Method of operation
• Service life expectancy
• Handle confi guration

2
