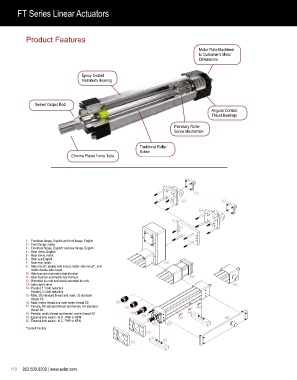

FT Series Linear Actuators

Product Features

Motor Plate Machined
to Customer’s Motor
Dimensions

Epoxy Coated
Aluminum Housing

Sealed Output Rod
Angular Contact
Thrust Bearings

Planetary Roller
Screw Mechanism

Traditional Roller
Screw
Chrome Plated Force Tube

7
5 6
4
3

1 - Front/rear flange, English and front flange, English
2 - Front flange, metric
3 - Front/rear flange, English* and rear flange, English
4 - Rear clevis, English
5 - Rear clevis, metric
6 - Rear eye English
7- Rear eye, metric 14
9 - Side mount*, double side mount, metric side mount*, and
metric double side mount
10 - Side trunnion and metric side trunnion
11 - Rear trunnion and metric rear trunnion 13
12 - Extended tie rods and metric extended tie rods
13 - Inline direct drive 11
14 - Parallel, 1:1 belt reduction
Parallel, 2:1 belt reduction
15 - Male, US standard thread and male, US standard
thread SS
16 - Male, metric thread and male metric thread SS 18
17 - Female, US standard thread and female, US standard 17 20
thread SS
18 - Female, metric thread and female, metric thread SS 16 19
19 - External limit switch - N.O., PNP or NPN 12 20 10
20 - External limit switch - N.C., PNP or NPN
15 9
*Consult Factory
1
8
2
