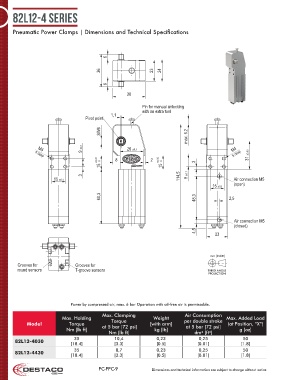

Page 9 - Destaco - Pneumatic Power Clamps

82L12-4 Series

Pneumatic Power Clamps | Dimensions and Technical Specifications

6

36 23 24

6
36

Pin for manual unlocking
1,1 with an extra tool
Pivot point

SW6 6,2
max.

±0,1
M4 26 ±0,1 M 4
9 6 deep ±0,05
6 deep
0,05 8 2 +0,05 31
+ 0 0 3
15 15
3 114,5 ±0,1
15 ±0,1 9 Air connection M5
(open)
15 ±0,1
60,3 48,3 2,5

Air connection M5
(closed)
4,5 23

mm [INCH] mm [INCH]
Grooves for Grooves for
round sensors T-groove sensors THIRD ANGLE FIRST ANGLE
PROJECTION PROJECTION

Power by compressed air, max. 6 bar Operation with oil-free air is permissable.
Max. Clamping Air Consumption
Max. Holding Torque Weight per double stroke Max. Added Load
Model Torque at 5 bar [72 psi] [with arm] at 5 bar [72 psi] (at Position‚ “X”)
Nm [lb ft] kg [lb] g [oz]
Nm [lb ft] dm [ft ]
3
3
35 10,4 0,23 0,25 50
82L12-4030
[18.4] [3.3] [0.5] [0.01] [1.8]
35 8,7 0,23 0,25 50
82L12-4430 [18.4] [3.3] [0.5] [0.01] [1.8]
PC-PPC-9 Dimensions and technical information are subject to change without notice
