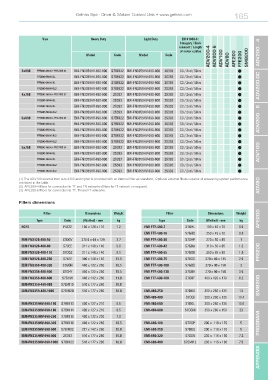

Page 165 - Gefran - Inverter system and power supply unit (ADV200 Drive family)

Gefran Spa - Drive & Motion Control Unit • www.gefran.com 165

Size Heavy Duty Light Duty EN 61800-3 :
Category / Envi-
ronment / Length
ADV200-4 ADV200-6 ADV100 ADV80 AFE200 FFE200 SMB200
of motor cables ADV200 - 4
Model Code Model Code

3x690 FFE200-690-6+PRC-MS 24 EMI-FN3359HV-690-600 S7EMI22 EMI-FN3359HV-690-800 2S393 C3 / 2nd / 50 m l
FFE200-690-6-SL EMI-FN3359HV-690-600 S7EMI22 EMI-FN3359HV-690-800 2S393 C3 / 2nd / 50 m l
FFE200-690-6-SL EMI-FN3359HV-690-600 S7EMI22 EMI-FN3359HV-690-800 2S393 C3 / 2nd / 50 m l
FFE200-690-6-SL2 EMI-FN3359HV-690-600 S7EMI22 EMI-FN3359HV-690-800 2S393 C3 / 2nd / 50 m l ADV200-DC
4x760 FFE200-760-6+PRC-MS 27 EMI-FN3359HV-690-800 2S393 EMI-FN3359HV-690-800 2S393 C3 / 2nd / 50 m l
FFE200-760-6-SL EMI-FN3359HV-690-800 2S393 EMI-FN3359HV-690-800 2S393 C3 / 2nd / 50 m l
FFE200-760-6-SL EMI-FN3359HV-690-800 2S393 EMI-FN3359HV-690-800 2S393 C3 / 2nd / 50 m l
FFE200-760-6-SL2 EMI-FN3359HV-690-800 2S393 EMI-FN3359HV-690-800 2S393 C3 / 2nd / 50 m l
5x690 FFE200-690-6+PRC-MS 31 EMI-FN3359HV-690-600 S7EMI22 EMI-FN3359HV-690-800 2S393 C3 / 2nd / 50 m l ADV200 - 6
FFE200-690-6-SL EMI-FN3359HV-690-600 S7EMI22 EMI-FN3359HV-690-800 2S393 C3 / 2nd / 50 m l
FFE200-690-6-SL EMI-FN3359HV-690-600 S7EMI22 EMI-FN3359HV-690-800 2S393 C3 / 2nd / 50 m l
FFE200-690-6-SL2 EMI-FN3359HV-690-600 S7EMI22 EMI-FN3359HV-690-800 2S393 C3 / 2nd / 50 m l
FFE200-690-6-SL2 EMI-FN3359HV-690-600 S7EMI22 EMI-FN3359HV-690-800 2S393 C3 / 2nd / 50 m l
5x760 FFE200-760-6+PRC-MS 34 EMI-FN3359HV-690-800 2S393 EMI-FN3359HV-690-800 2S393 C3 / 2nd / 50 m l
FFE200-760-6-SL EMI-FN3359HV-690-800 2S393 EMI-FN3359HV-690-800 2S393 C3 / 2nd / 50 m l ADV100
FFE200-760-6-SL EMI-FN3359HV-690-800 2S393 EMI-FN3359HV-690-800 2S393 C3 / 2nd / 50 m l
FFE200-760-6-SL2 EMI-FN3359HV-690-800 2S393 EMI-FN3359HV-690-800 2S393 C3 / 2nd / 50 m l
FFE200-760-6-SL2 EMI-FN3359HV-690-800 2S393 EMI-FN3359HV-690-800 2S393 C3 / 2nd / 50 m l
(1) The ADV100 inverter from size 4300 and higher is provided with an internal filter as standard,. Optional external filters capable of enhancing system performance
are listed in the table.
(2) AFE200-4 filters for connection to TT and TN networks (filters for IT network on request). ADV80
(3) AFE200-6 filters for connection to TT, TN and IT networks.

Filters dimensions

Filter Dimensions Weight Filter Dimensions Weight
Type Code (WxHxd) - mm kg Type Code (WxHxd) - mm kg AFE200
ECF3 F4ZZ2 150 x 120 x 110 1.2 EMI FTF-480-7 S7GHL 190 x 40 x 70 0.6
EMI FTF-480-16 S7GHO 250 x 45 x 70 0.8
EMI FN3120-480-50 S7DGV 278.6 x 64 x 129 2.7 EMI FTF-480-30 S7GHP 270 x 50 x 85 1
EMI FN3120-480-80 S73EE 311 x 140 x 140 5.0 EMI FTF-480-42 S7GOA 310 x 50 x 85 1.3
EMI FN3120-480-110 S7DGZ 311 x 140 x 140 6.1 EMI FTF-480-55 S7GOB 250 x 85 x 90 1.9 FFE200
EMI FN3120-480-230 S74EE 390 x 140 x 140 13.3 EMI FTF-480-75 S7GOC 270 x 80 x 135 2.6
EMI FN3359-480-320 S7GOH 440 x 122 x 260 10.5 EMI FTF-480-100 S7GOD 270 x 90 x 150 3
EMI FN3359-480-400 S7GHY 440 x 122 x 260 10.5 EMI FTF-480-130 S7GOE 270 x 90 x 150 3.6
EMI FN3359-480-600 S7GHW 440 x 142 x 260 11.0 EMI FTF-480-180 S7GOF 400 x 120 x 170 6.2
EMI-FN3359-480-800 S7EMI19 510 x 177 x 280 18.0 SMB200
EMI-FN3359-480-1000 S7EMI20 510 x 177 x 280 18.0 EMI-480-250 S7DGG 300 x 260 x 135 13
EMI-480-400 S7DGI 300 x 260 x 135 13.4
EMI-FN3359HV-690-150 S7EMI13 420 x 127 x 210 6.5 EMI-480-600 S7DGL 300 x 260 x 135 13.6
EMI-FN3359HV-690-180 S7EMI14 420 x 127 x 210 6.5 EMI-480-800 S7DGM 350 x 280 x 150 23
EMI-FN3359HV-690-250 S7EMI15 420 x 132 x 230 7.0
EMI-FN3359HV-690-320 S7EMI16 440 x 122 x 260 10.5 EMI-690-180 S7DGP 200 x 110 x 170 5 PROGRAM.
EMI-FN3359HV-690-600 S7EMI22 221 x 142 x 260 18.0 EMI-690-250 S7DGQ 200 x 110 x 170 5
EMI-FN3359HV-690-800 2S393 510 x 177 x 280 18.0 EMI-690-320 S7DGR 230 x 116 x 190 7.2
EMI-FN3359HV-690-1000 S7EMI23 510 x 177 x 280 18.0 EMI-690-400 S7EMI12 230 x 116 x 190 7.5
APPENDIX
