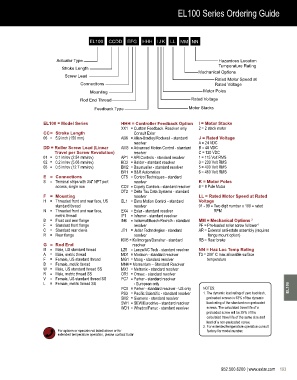

EL100 Series Ordering Guide

Sample Product Number: EL100-0602-SBF-CT5-2C8-40-XL-ART3

EL100 CCDD EFG HHH I J K LL MM NN

Actuator Type Hazardous Location
Temperature Rating
Stroke Length
Mechanical Options
Screw Lead
Rated Motor Speed at
Connections Rated Voltage
Mounting Motor Poles
Rod End Thread Rated Voltage
Feedback Type Motor Stacks

EL100 = Model Series HHH = Controller Feedback Option I = Motor Stacks
XX1 = Custom Feedback. Resolver only. 2 = 2 stack motor
CC = Stroke Length Consult Exlar
06 = 5.9 inch (150 mm) AB6 = Allen-Bradley/Rockwell - standard J = Rated Voltage
resolver A = 24 VDC
DD = Roller Screw Lead (Linear AM3 = Advanced Motion Control - standard B = 48 VDC
Travel per Screw Revolution) resolver C = 120 VDC
01 = 0.1 in/rev (2.54 mm/rev) AP1 = API Controls - standard resolver 1 = 115 Volt RMS
02 = 0.2 in/rev (5.08 mm/rev) BD2 = Baldor - standard resolver 3 = 230 Volt RMS
05 = 0.5 in/rev (12.7 mm/rev) BM2 = Baumueller - standard resolver 5 = 400 Volt RMS
BR1 = B&R Automation 6 = 460 Volt RMS
E = Connections CT5 = Control Techniques - standard
S = Terminal strips with 3/4” NPT port resolver K = Motor Poles
access, single row CO2 = Copely Controls - standard resolver 8 = 8 Pole Motor
DT2 = Delta Tau Data Systems - standard
F = Mounting resolver LL = Rated Motor Speed at Rated
H = Threaded front and rear face, US EL1 = Elmo Motion Control - standard Voltage
standard thread resolver 01 - 99 = Two digit number x 100 = rated
N = Threaded front and rear face, EX4 = Exlar - standard resolver RPM
metric thread IF1 = Infranor - standard resolver
B = Front and rear flange IN6 = Indramat/Bosch-Rexroth - standard MM = Mechanical Options 2
F = Standard front flange resolver PF = Pre-loaded roller screw follower 1
C = Standard rear clevis JT1 = Jetter Technologies - standard AR = External anti-rotate assembly (requires
R = Rear flange resolver flange mount option)
KM5 = Kollmorgen/Danaher - standard RB = Rear brake
G = Rod End resolver
M = Male, US standard thread LZ5 = Lenze/AC Tech - standard resolver NN = Haz Loc Temp Rating
A = Male, metric thread MD1 = Modicon - standard resolver T3 = 200˚ C max allowable surface
F = Female, US standard thread MG1 = Moog - standard resolver temperature
B = Female, metric thread MN4 = Momentum – Standard Resolver
W = Male, US standard thread SS MX1 = Metronix - standard resolver
R = Male, metric thread SS OR1 = Ormec - standard resolver
V = Female, US standard thread SS PC7 = Parker - standard resolver
L = Female, metric thread SS - European only
PC0 = Parker - standard resolver - US only NOTES: EL100
PS3 = Pacific Scientific - standard resolver 1. The dynamic load rating of zero backlash,
SM2 = Siemens - standard resolver preloaded screws is 63% of the dynamic
SW1 = SEW/Eurodrive - standard resolver load rating of the standard non-preloaded
WD1 = Whedco/Fanuc - standard resolver screws. The calculated travel life of a
preloaded screw will be 25% of the
calculated travel life of the same size and
lead of a non-preloaded screw.
2. For extended temperature operation consult
For options or specials not listed above or for factory for model number.
extended temperature operation, please contact Exlar
