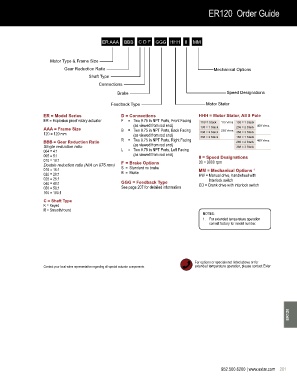

Page 25 - Exlar - EL/ER series Explosion-proof actuators and motors

ER120 Order Guide

Sample Product Number: ER120-010-RN40S-CT5-168-30-T4-XL

ER AAA BBB C D F GGG HHH II MM

Motor Type & Frame Size
Gear Reduction Ratio Mechanical Options
Shaft Type
Connections
Brake Speed Designations

Feedback Type Motor Stator

ER = Model Series D = Connections HHH = Motor Stator, All 8 Pole
ER = Explosion proof rotary actuator F = Two 0.75 in NPT Ports, Front Facing 118=1 Stack 115 Vrms 158 = 1 Stack
(as viewed from rod end) 400 Vrms
AAA = Frame Size B = Two 0.75 in NPT Ports, Back Facing 138 = 1 Stack 230 Vrms 258 = 2 Stack
120 = 120 mm (as viewed from rod end) 238 = 2 Stack 358 = 3 Stack
R = Two 0.75 in NPT Ports, Right Facing 338 = 3 Stack 168 = 1 Stack 460 Vrms
BBB = Gear Reduction Ratio 268 = 2 Stack
Single reduction ratio (as viewed from rod end) 368 = 3 Stack
004 = 4:1 L = Two 0.75 in NPT Ports, Left Facing
005 = 5:1 (as viewed from rod end) II = Speed Designations
010 = 10:1 30 = 3000 rpm
Double reduction ratio (N/A on 075 mm) F = Brake Options
016 = 16:1 S = Standard no brake MM = Mechanical Options
1
020 = 20:1 B = Brake HW = Manual drive, handwheel with
025 = 25:1 Interlock switch
040 = 40:1 GGG = Feedback Type CD = Crank drive with interlock switch
050 = 50:1 See page 207 for detailed information
100 = 100:1
C = Shaft Type
K = Keyed
R = Smooth/round
NOTES:
1. For extended temperature operation
consult factory for model number.

For options or specials not listed above or for
Contact your local sales representative regarding all special actuator components. extended temperature operation, please contact Exlar
