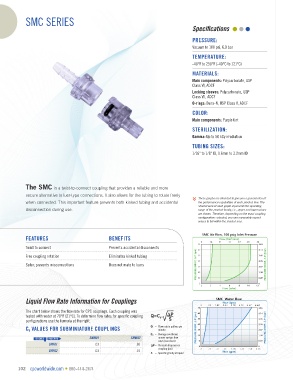

SMC SERIES
Specifications

PRESSURE:
Vacuum to 100 psi, 6.9 bar
TEMPERATURE:
-40°F to 250°F (-40°C to 121°C)
MATERIALS:
Main components: Polycarbonate, USP
Class VI, ADCF
Locking sleeves: Polycarbonate, USP
Class VI , ADCF
O-rings: Buna-N, USP Class V, ADCF
COLOR:
Main components: Purple tint

STERILIZATION:
Gamma: Up to 50 kGy irradiation
TUBING SIZES:
1/16" to 1/8" ID, 1.6mm to 3.2mm ID

The SMC is a twist-to-connect coupling that provides a reliable and more
secure alternative to luer-type connections. It also allows for the tubing to rotate freely
These graphs are intended to give you a general idea of
when connected. This important feature prevents both kinked tubing and accidental the performance capabilities of each product line. The
shaded area of each graph represents the operating
disconnection during use. range of the product family, i.e., upper and lower values
are shown. Therefore, depending on the exact coupling
configurations selected, you can reasonably expect
values to fall within the shaded area.

FEATURES BENEFITS

Twist to connect Prevents accidental disconnects
Free coupling rotation Eliminates kinked tubing
Safer; prevents misconnections Does not mate to luers

Liquid Flow Rate Information for Couplings

The chart below shows the flow rate for CPC couplings. Each coupling was
tested with water at 70°F (21°C). To determine flow rates for specific coupling
configurations use the formula at the right.
C V VALUES FOR SUBMINIATURE COUPLINGS Q = Flow rate in gallons per

minute
C V = Average coefficient
BODIES INSERTS SMM01 SMM02 across various flow
rates (see chart)
SMF01 .03 .03 P = Pressure drop across
SMF02 .03 .19 coupling (psi)
S = Specific gravity of liquid
