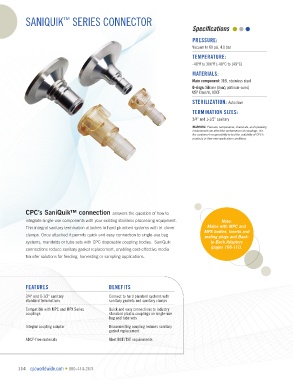

SANIQUIK SERIES CONNECTOR
™
Specifications

PRESSURE:
Vacuum to 60 psi, 4.1 bar
TEMPERATURE:
-40°F to 300°F (-40°C to 149°C)
MATERIALS:
Main component: 316L stainless steel
O-rings: Silicone (clear), platinum-cured,
USP Class VI, ADCF

STERILIZATION: Autoclave
TERMINATION SIZES:
3/4" and 1-1/2" sanitary

WARNING: Pressure, temperature, chemicals, and operating
environment can affect the performance of couplings. It is
the customer’s responsibility to test the suitability of CPC’s
products in their own application conditions.

CPC’s SaniQuik™ connection answers the question of how to
integrate single-use components with your existing stainless processing equipment. Note:
This integral sanitary termination attaches to hard-plumbed systems with tri-clover Mates with MPC and
MPX bodies, inserts and
clamps. Once attached it permits quick and easy connection to single-use bag sealing plugs and Back-
systems, manifolds or tube sets with CPC disposable coupling bodies. SaniQuik to-Back Adapters
(pages 106-111).
connections reduce sanitary gasket replacement, enabling cost-effective media
transfer solutions for feeding, harvesting or sampling applications.

FEATURES BENEFITS
3/4" and 1-1/2" sanitary Connect to hard plumbed systems with
standard terminations sanitary gaskets and sanitary clamps
Compatible with MPC and MPX Series Quick and easy connections to industry
couplings standard plastic couplings on single-use
bag and tube sets
Integral coupling adaptor Disconnecting coupling reduces sanitary
gasket replacement
ADCF-free materials Meet BSE/TSE requirements

114 cpcworldwide.com • 800-444-2474
