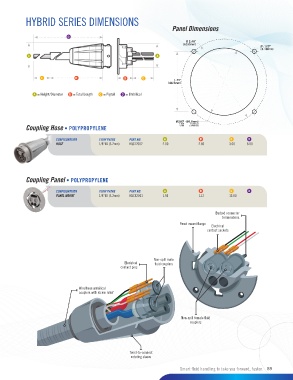

HYBRID SERIES DIMENSIONS
Panel Dimensions
D
Ø 2.48"
(63.0mm)
Ø .125"
(3.18mm)
A A
C B B C 1.75"
(44.5mm)
A = Height/Diameter B = Total Length C = Pigtail D = Umbilical
Ø 2.00" (50.8mm)
+.010 (+.25mm)
(-.000mm)
-.000
Coupling Hose • POLYPROPYLENE
CONFIGURATION FLOW PATHS PART NO. A B C D
HOSE 1/8" ID (3.2mm) HQC17002 2.00 2.80 3.00 8.00
Coupling Panel • POLYPROPYLENE
CONFIGURATION FLOW PATHS PART NO. A B C D
PANEL MOUNT 1/8" ID (3.2mm) HQC42001 1.96 1.12 12.00
Barbed connector
terminations
Panel mount flange
Electrical
contact sockets
Non-spill male
Electrical fluid couplers
contact pins
Wire/hose umbilical
couplers with strain relief
Non-spill female fluid
couplers
Twist-to-connect
rotating sleeve
