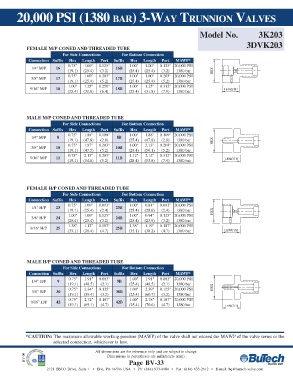

20,000 PSI (1380 BAR) 3-WAY TRUNNION VALVES

Model No. 3K203
3DVK203
FEMALE M/P CONED AND THREADED TUBE
For Side Connections For Bottom Connection
Connection Suffix Hex Length Port Suffix Hex Length Port MAWP*
0.75" 1.00" 0.125" 1.00" 1.00" 0.125" 20,000 PSI
1/4" M/P 16 16B
(19.1) (25.4) (3.2) (25.4) (25.4) (3.2) 1380 bar HEX
0.75" 1.00" 0.203" 1.00" 1.00" 0.203" 20,000 PSI
3/8" M/P 17 17B
(19.1) (25.4) (5.2) (25.4) (25.4) (5.2) 1380 bar
1.00" 1.25" 0.250" 1.00" 1.25" 0.312" 20,000 PSI
9/16" M/P 18 18B LENGTH
(25.4) (31.8) (6.4) (25.4) (31.8) (7.9) 1380 bar

MALE M/P CONED AND THREADED TUBE
For Side Connections For Bottom Connection
Connection Suffix Hex Length Port Suffix Hex Length Port MAWP*
0.75" 1.88" 0.109" 1.00" 1.88" 0.109" 20,000 PSI
1/4" M/P 8 8B
(19.1) (47.8) (2.8) (25.4) (47.8) (2.8) 1380 bar HEX
0.75" 1.87" 0.203" 1.00" 2.13" 0.203" 20,000 PSI
3/8" M/P 10 10B
(19.1) (47.5) (5.2) (25.4) (54.1) (5.2) 1380 bar
0.75" 2.15" 0.203" 1.12" 2.12" 0.312" 20,000 PSI
9/16" M/P 11 11B LENGTH
(19.1) (54.6) (5.2) (28.4) (53.8) (7.9) 1380 bar

FEMALE H/P CONED AND THREADED TUBE
For Side Connections For Bottom Connection
Connection Suffix Hex Length Port Suffix Hex Length Port MAWP*
0.75" 1.00" 0.093" 1.00" 0.81" 0.093" 20,000 PSI
1/4" H/P 23 23B
(19.1) (25.4) (2.4) (25.4) (20.6) (2.4) 1380 bar HEX
1.00" 1.00" 0.125" 1.00" 0.94" 0.125" 20,000 PSI
3/8" H/P 24 24B
(25.4) (25.4) (3.2) (25.4) (23.9) (3.2) 1380 bar
1.38" 1.12" 0.187" 1.38" 1.19" 0.187" 20,000 PSI
9/16" H/P 25 25B
(35.1) (28.4) (4.7) (35.1) (30.2) (4.7) 1380 bar LENGTH

MALE H/P CONED AND THREADED TUBE
For Side Connections For Bottom Connection
Connection Suffix Hex Length Port Suffix Hex Length Port MAWP*
0.75" 1.91" 0.083" 1.00" 1.91" 0.083" 20,000 PSI
1/4" H/P 9 9B
(19.1) (48.5) (2.1) (25.4) (48.5) (2.1) 1380 bar
0.75" 2.34" 0.125" 1.00" 2.39" 0.125" 20,000 PSI HEX
3/8" H/P 30 30B
(19.1) (59.4) (3.2) (25.4) (60.7) (3.2) 1380 bar
0.75" 2.72" 0.187" 1.00" 2.78" 0.187" 20,000 PSI
9/16" H/P 42 42B
(19.1) (69.1) (4.7) (25.4) (70.6) (4.7) 1380 bar LENGTH

*CAUTION: The maximum allowable working pressure (MAWP) of the valve shall not exceed the MAWP of the valve series or the
selected connection, whichever is less.

All dimensions are for reference only and are subject to change.
BV-09 Dimensions in parentheses are millimeters (mm).
Page BV-33
