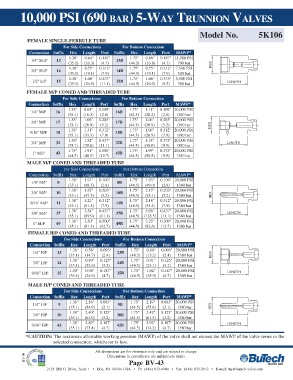

10,000 PSI (690 BAR) 5-WAY TRUNNION VALVES

Model No. 5K106
FEMALE SINGLE-FERRULE TUBE
For Side Connections For Bottom Connection
Connection Suffix Hex Length Port Suffix Hex Length Port MAWP*
1.38" 0.64" 0.187" 1.75" 0.66" 0.187" 11,500 PSI
1/4" SL/P 13 13B
(35.1) (16.3) (4.7) (44.5) (16.8) (4.7) 790 bar HEX
1.38" 0.75" 0.312" 1.75" 0.75" 0.312" 7,500 PSI
3/8" SL/P 14 14B
(35.1) (19.1) (7.9) (44.5) (19.1) (7.9) 520 bar
1.38" 1.06" 0.437" 1.75" 1.06" 0.375" 5,500 PSI
1/2" L/P 15 15B LENGTH
(35.1) (26.9) (11.1) (44.5) (26.9) (9.5) 380 bar
FEMALE M/P CONED AND THREADED TUBE
For Side Connections For Bottom Connection
Connection Suffix Hex Length Port Suffix Hex Length Port MAWP*
1.38" 0.65" 0.109" 1.75" 1.11" 0.109" 20,000 PSI
1/4" M/P 16 16B
(35.1) (16.5) (2.8) (44.5) (28.2) (2.8) 1380 bar
1.38" 1.06" 0.203" 1.75" 1.06" 0.203" 20,000 PSI
3/8" M/P 17 17B
(35.1) (26.9) (5.2) (44.5) (26.9) (5.2) 1380 bar HEX
1.38" 1.31" 0.312" 1.75" 1.06" 0.312" 20,000 PSI
9/16" M/P 18 18B
(35.1) (33.3) (7.9) (44.5) (26.9) (7.9) 1380 bar
1.38" 1.52" 0.437" 1.75" 1.18" 0.375" 20,000 PSI
3/4" M/P 32 32B LENGTH
(35.1) (38.6) (11.1) (44.5) (30.0) (9.5) 1380 bar
1.75" 1.91" 0.500" 1.75" 1.99" 0.375" 20,000 PSI
1" M/P 43 43B
(44.5) (48.5) (12.7) (44.5) (50.5) (9.5) 1380 bar
MALE M/P CONED AND THREADED TUBE
For Side Connections For Bottom Connection
Connection Suffix Hex Length Port Suffix Hex Length Port MAWP*
1.38" 1.91" 0.109" 1.75" 1.93" 0.109" 20,000 PSI
1/4" M/P 8 8B
(35.1) (48.5) (2.8) (44.5) (49.0) (2.8) 1380 bar
1.38" 1.87" 0.203" 1.75" 2.17" 0.203" 20,000 PSI
3/8" M/P 10 10B
(35.1) (47.5) (5.2) (44.5) (55.1) (5.2) 1380 bar HEX
1.38" 3.21" 0.312" 1.75" 2.18" 0.312" 20,000 PSI
9/16" M/P 11 11B
(35.1) (81.5) (7.9) (44.5) (55.4) (7.9) 1380 bar
1.38" 3.54" 0.437" 1.75" 5.06" 0.437" 20,000 PSI
3/4" M/P 37 37B LENGTH
(35.1) (89.9) (11.1) (44.5) (128.5) (11.1) 1380 bar
1.38" 3.20" 0.500" 1.75" 3.25" 0.500" 20,000 PSI
1" M/P 49 49B
(35.1) (81.3) (12.7) (44.5) (82.6) (12.7) 1380 bar
FEMALE H/P CONED AND THREADED TUBE
For Side Connections For Bottom Connection
Connection Suffix Hex Length Port Suffix Hex Length Port MAWP*
1.38" 0.58" 0.093" 1.75" 0.60" 0.093" 20,000 PSI
1/4" H/P 23 23B
(35.1) (14.7) (2.4) (44.5) (15.2) (2.4) 1380 bar HEX
1.38" 0.89" 0.125" 1.75" 0.91" 0.125" 20,000 PSI
3/8" H/P 24 24B
(35.1) (22.6) (3.2) (44.5) (23.1) (3.2) 1380 bar
1.50" 0.98" 0.187" 1.75" 1.02" 0.187" 20,000 PSI LENGTH
9/16" H/P 25 25B
(38.1) (24.9) (4.7) (44.5) (25.9) (4.7) 1380 bar
MALE H/P CONED AND THREADED TUBE
For Side Connections For Bottom Connection
Connection Suffix Hex Length Port Suffix Hex Length Port MAWP*
1.38" 2.16" 0.083" 1.75" 2.19" 0.083" 20,000 PSI
1/4" H/P 9 9B
(35.1) (54.9) (2.1) (44.5) (55.6) (2.1) 1380 bar HEX
1.38" 2.40" 0.125" 1.75" 2.42" 0.125" 20,000 PSI
3/8" H/P 30 30B
(35.1) (61.0) (3.2) (44.5) (61.5) (3.2) 1380 bar
1.38" 2.89" 0.187" 1.75" 2.92" 0.187" 20,000 PSI LENGTH
9/16" H/P 42 42B
(35.1) (73.4) (4.7) (44.5) (74.2) (4.7) 1380 bar
*CAUTION: The maximum allowable working pressure (MAWP) of the valve shall not exceed the MAWP of the valve series or the
selected connection, whichever is less.

All dimensions are for reference only and are subject to change.
BV-09 Dimensions in parentheses are millimeters (mm).
Page BV-43
