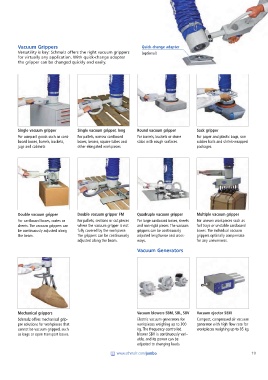

Page 19 - Schmalz - Vacuum Handling Systems: Tube Lifters Jumbo and Lifting Devices VacuMaster

MH_Brosch_2016_EN_MH_Bro_EN.qxd 09.12.15 09:36 Seite 19

Vacuum Grippers Quick-change adapter
Versatility is key: Schmalz offers the right vacuum grippers (optional)
for virtually any application. With quick-change adapter
the gripper can be changed quickly and easily.

Single vacuum gripper Single vacuum gripper, long Round vacuum gripper Sack gripper
For compact goods such as card- For pallets, narrow cardboard For barrels, buckets or stone For paper and plastic bags, raw
board boxes, barrels, buckets, boxes, beams, square tubes and slabs with rough surfaces. rubber bails and shrink-wrapped
jugs and cabinets. other elongated workpieces. packages.

Double vacuum gripper Double vacuum gripper FM Quadruple vacuum gripper Multiple vacuum gripper
For cardboard boxes, crates or For pallets, sections or cut pieces For large cardboard boxes, sheets For uneven workpieces such as
sheets. The vacuum grippers can where the vacuum gripper is not and non-rigid pieces. The vacuum foil trays or unstable cardboard
be continuously adjusted along fully covered by the workpiece. grippers can be continuously boxes. The individual vacuum
the beam. The grippers can be continuously adjusted lengthwise and cross- grippers optimally compensate
adjusted along the beam. ways. for any unevenness.
Vacuum Generators

Mechanical grippers Vacuum blowers SBM, SBL, SBV Vacuum ejector SEM
Schmalz offers mechanical grip- Electric vacuum generators for Compact, compressed air vacuum
per solutions for workpieces that workpieces weighing up to 300 generator with high flow rate for
cannot be vacuum-gripped, such kg. The frequency-controlled workpieces weighing up to 85 kg.
as bags or open transport boxes. blower SBV is continuously vari-
able, and its power can be
adjusted to changing loads.
