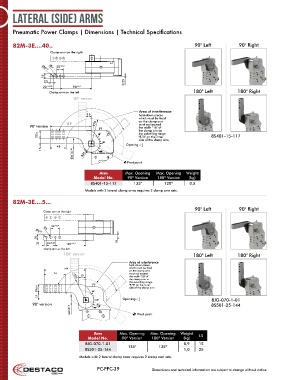

Page 302 - DESTACO Clamping Technologies

Lateral (Side) Arms

Pneumatic Power Clamps | Dimensions | Technical Specifications

82M-3E....40.. 90° Left 90° Right
Clamp arm on the right

20 ±0,2
Ø7
Ø6 H7
16
) 7 ( 0,25
20 ±0,02 90 ±0,1
Clamp arm on the left 180° Left 180° Right
180° version

Area of interference
15 hold-down pieces
which must be fixed
117 on the clamp arm
must not exceed
90° version ~R70 the width "16" of
22±0,1 the clamp arm in 8S401-15-117
the swivelling range
"R70" on the inner
side of the clamp arm.
15 45 H8 Opening
SW16 R 24
Pivot point
Arm Max. Opening Max. Opening Weight
Model No. 90º Version 180º Version (kg)
8S401-15-117 135° 120º 0,5
Models with 2 lateral clamp arms requires 2 clamp arm sets.

82M-3E....5...
90° Left 90° Right
Clamp arm on the right

30 ±0,2
Ø9
Ø6 H7

20
( 9) 30 ±0,02 105 ±0,1 10
Clamp arm on the left
180° version 180° Left 180° Right
Area of interference
hold-down pieces
144 which must be fixed
on the clamp arm
74 must not exceed
L5 the width "20" of
the clamp arm in
~R75
the swivelling range
"R75" on the inner
28±0,1 side of the clamp arm
L5 Opening 8JG-070-1-01
90° version R28 8S501-25-144
SW19 H8 Pivot point

Arm Max. Opening Max. Opening Weight
Model No. 90º Version 180º Version (kg) L5
8JG-070-1-01 0,9 15
8S501-25-144 135° 135º 1,0 25
Models with 2 lateral clamp arms requires 2 clamp arm sets.

PC-PPC-39 Dimensions and technical information are subject to change without notice
