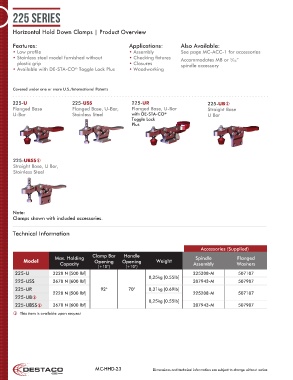

Page 23 - Destaco - Horizontal Hold Down Clamps

225 Series

Horizontal Hold Down Clamps | Product Overview

Features: Applications: Also Available:
• Low profile • Assembly See page MC-ACC-1 for accessories
• Stainless steel model furnished without • Checking fixtures Accommodates M8 or / 16”
5
plastic grip • Closures spindle accessory
• Available with DE-STA-CO Toggle Lock Plus • Woodworking
®

Covered under one or more U.S./International Patents

225-U 225-USS 225-UR 225-UB
Flanged Base Flanged Base, U-Bar, Flanged Base, U-Bar Straight Base
U-Bar Stainless Steel with DE-STA-CO ® U Bar
Toggle Lock
Plus

225-UBSS
Straight Base, U Bar,
Stainless Steel

Note:
Clamps shown with included accessories.

Technical Information

Accessories (Supplied)
Max. Holding Clamp Bar Handle Spindle Flanged
Model Opening Opening Weight
Capacity Assembly Washers
(+10°) (+10°)
225-U 2220 N [500 lbf] 225208-M 507107
0,25kg [0.55lb]
225-USS 2670 N [600 lbf] 207943-M 507907
225-UR 92° 70° 0,31kg [0.69lb]
2220 N [500 lbf] 225208-M 507107
225-UB
0,25kg [0.55lb]
225-UBSS  2670 N [600 lbf] 207943-M 507907
 This item is available upon request

MC-HHD-23 Dimensions and technical information are subject to change without notice
