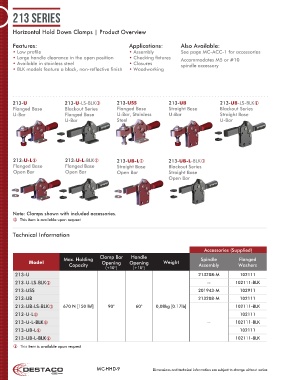

Page 9 - Destaco - Horizontal Hold Down Clamps

213 Series

Horizontal Hold Down Clamps | Product Overview

Features: Applications: Also Available:
• Low profile • Assembly See page MC-ACC-1 for accessories
• Large handle clearance in the open position • Checking fixtures Accommodates M5 or #10
• Available in stainless steel • Closures spindle accessory
• BLK models feature a black, non-reflective finish • Woodworking

213-U 213-U-LS-BLK 213-USS 213-UB 213-UB-LS-BLK
Flanged Base Blackout Series Flanged Base Straight Base Blackout Series
U-Bar Flanged Base U-Bar, Stainless U-Bar Straight Base
U-Bar Steel U-Bar

213-U-L 213-U-L-BLK 213-UB-L 213-UB-L-BLK
Flanged Base Flanged Base Straight Base Blackout Series
Open Bar Open Bar Open Bar Straight Base
Open Bar

Note: Clamps shown with included accessories.
 This item is available upon request

Technical Information

Accessories (Supplied)

Max. Holding Clamp Bar Handle Spindle Flanged
Model Opening Opening Weight
Capacity Assembly Washers
(+10°) (+10°)
213-U 213208-M 102111
213-U-LS-BLK -- 102111-BLK
213-USS 201943-M 102911
213-UB 213208-M 102111
213-UB-LS-BLK 670 N [150 lbf] 90° 60° 0,08kg [0.17lb] 102111-BLK
213-U-L 102111
213-U-L-BLK -- 102111-BLK

213-UB-L 102111
213-UB-L-BLK 102111-BLK
 This item is available upon request

MC-HHD-9 Dimensions and technical information are subject to change without notice
