DPL Series
M3
M5
M100
M3
M1
M100 M5 M1 M3 M5 M3
M5

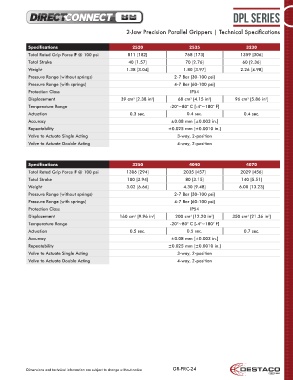

2-Jaw Precision Parallel Grippers | Technical Specifications
Specifications 2520 2535 3230
Total Rated Grip Force F @ 100 psi 811 [182] 768 [173] 1359 [306]
Total Stroke 40 [1.57] 70 [2.76] 60 [2.36]
Weight 1.38 [3.04] 1.80 [3.97] 2.26 [4.98]
Pressure Range (without springs) 2-7 Bar [30-100 psi]
Pressure Range (with springs) 4-7 Bar [60-100 psi]
Protection Class IP54
Displacement 39 cm [2.38 in ] 68 cm [4.15 in ] 96 cm [5.86 in ]
3
3
3
3
3
3
Temperature Range -20°~80° C [-4°~180° F]
Actuation 0.3 sec. 0.4 sec. 0.4 sec.
Accuracy ±0.08 mm [±0.003 in.]
Repeatability ±0.025 mm [±0.0010 in.]
Valve to Actuate Single Acting 3-way, 2-position
Valve to Actuate Double Acting 4-way, 2-position
Specifications 3250 4040 4070
Total Rated Grip Force F @ 100 psi 1306 [294] 2035 [457] 2029 [456]
Total Stroke 100 [3.94] 80 [3.15] 140 [5.51]
Weight 3.02 [6.66] 4.30 [9.48] 6.00 [13.23]
Pressure Range (without springs) 2-7 Bar [30-100 psi]
Pressure Range (with springs) 4-7 Bar [60-100 psi]
Protection Class IP54
Displacement 160 cm [9.96 in ] 200 cm [12.20 in ] 350 cm [21.36 in ]
3
3
3
3
3
3
Temperature Range -20°~80° C [-4°~180° F]
Actuation 0.5 sec. 0.5 sec. 0.7 sec.
Accuracy ±0.08 mm [±0.003 in.]
Repeatability ±0.025 mm [±0.0010 in.]
Valve to Actuate Single Acting 3-way, 2-position
Valve to Actuate Double Acting 4-way, 2-position
Dimensions and technical information are subject to change without notice GR-PRC-24
