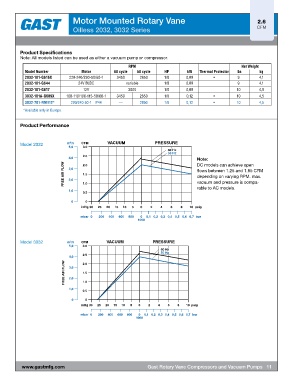

Page 11 - Gast Rotary Vane Compressors and Vacuum Pumps

Motor Mounted Rotary Vane 2.6

Oilless 2032, 3032 Series CFM

Product Specifications
Note: All models listed can be used as either a vacuum pump or compressor.

RPM Net Weight
Model Number Motor 60 cycle 50 cycle HP kW Thermal Protector lbs kg
2032-101-G616X 220-240/230-50/60-1 3450 2850 1/8 0,09 • 9 4,1
2032-101-G644 24V BLDC variable 1/8 0,09 9 4,1
2032-101-G617 12V 3000 1/8 0,09 10 4,5
3032-101A-G609X 100-110/100-115-50/60-1 3450 2850 1/6 0,12 • 10 4,5
3032-701-RM112* 220/240-50-1 IP44 — 2850 1/6 0,12 • 10 4,5
*Available only in Europe.

Product Performance

Model 2032 m 3 /h CFM VACUUM PRESSURE
5,0 3.0
60 Hz
50 Hz
2.5
4,0 2.0 Note:
FREE AIR FLOW 3,0 1.5 flows between 1.25 and 1.85 CFM
DC models can achieve open
depending on varying RPM. max.
2,0
vacuum and pressure is compa-
1,0 1.0 rable to AC models.
0.5
0 0
inHg 30 25 20 15 10 5 0 2 4 6 8 10 psig

mbar 0 200 400 600 800 0 0,1 0,2 0,3 0,4 0,5 0,6 0,7 bar
1000

Model 3032 m 3 /h CFM VACUUM PRESSURE
5,0 3.0
60 Hz
50 Hz
2.5
4,0 2.0
FREE AIR FLOW 3,0 1.5

2,0

1,0 1.0
0.5
0 0
inHg 30 25 20 15 10 5 0 2 4 6 8 10 psig

mbar 0 200 400 600 800 0 0,1 0,2 0,3 0,4 0,5 0,6 0,7 bar
1000

www.gastmfg.com Gast Rotary Vane Compressors and Vacuum Pumps 11
