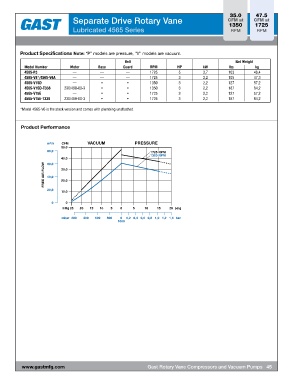

Page 45 - Gast Rotary Vane Compressors and Vacuum Pumps
P. 45
35.0 47.5
Separate Drive Rotary Vane CFM at CFM at
Lubricated 4565 Series 1350 1725
RPM
RPM
Product Specifications Note: “P” models are pressure, “V” models are vacuum.
Belt Net Weight
Model Number Motor Base Guard RPM HP kW lbs kg
4565-P3 — — — 1725 5 3,7 103 46,4
4565-V6*/4565-V6A — — — 1725 3 2,2 105 47,3
4565-V15D — • • 1350 3 2,2 127 57,2
4565-V15D-T338 230/460-60-3 • • 1350 3 2,2 187 84,2
4565-V15E — • • 1725 3 2,2 127 57,2
4565-V15E-T338 230/460-60-3 • • 1725 3 2,2 187 84,2
*Model 4565-V6 is the stock version and comes with plumbing unattached.
Product Performance
m 3 /h CFM VACUUM PRESSURE
50.0
80,0 1725 RPM
1350 RPM
40.0
FREE AIR FLOW 40,0 30.0
60,0
20.0
20,0
10.0
0 0
inHg 25 20 15 10 5 0 5 10 15 20 psig
mbar 200 400 600 800 0 0,2 0,4 0,6 0,8 1,0 1,2 1,4 bar
1000
www.gastmfg.com Gast Rotary Vane Compressors and Vacuum Pumps 45
