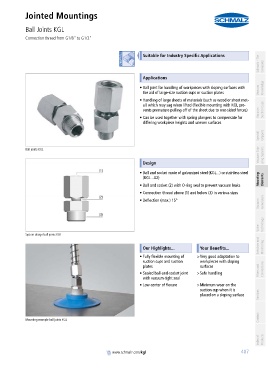

Jointed Mountings
Ball Joints KGL
PA01019111_inh_EN.pdf Connection thread from G1/8" to G1/2" PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Ball joint for handling of workpieces with sloping surfaces with Vacuum Knowledge
the aid of large-size suction cups or suction plates
• Handling of large sheets of materials (such as wood or sheet met-
al) which may sag when lifted (flexible mounting with KGL pre-
vents premature pulling-off of the sheet due to one-sided forces) Vacuum Suction Cups
• Can be used together with spring plungers to compensate for
differing workpiece heights and uneven surfaces

Special Grippers

Vacuum Grip- ping Systems
Ball joints KGL
container
Design

• Ball and socket made of galvanized steel (KGL...) or stainless steel
(KGL...A2) Mounting Elements
• Ball and socket (2) with O-ring seal to prevent vacuum leaks
• Connection thread above (1) and below (3) in various sizes
Vacuum Generators
• Deflection (max.) 15°

Valve Technology

System design ball joints KGL
Switches and
container
Our Highlights... Your Benefits... Monitoring
• Fully flexible mounting of >Very good adaptation to
suction cups and suction workpieces with sloping
plates surfaces Connections
• Sealed ball-and-socket joint >Safe handling Filters and
with vacuum-tight seal
• Low center of flexure >Minimum wear on the
suction cup when it is
placed on a sloping surface Services

Contact
Mounting example ball joints KGL

Index of Products

container
www.schmalz.com/kgl
