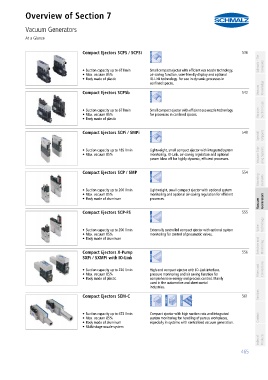

Overview of Section 7
Vacuum Generators
PA01019111_inh_EN.pdf At a Glance Compact Ejectors SCPS / SCPSi 536 PA01019111_inh_EN.pdf

• Suction capacity up to 67 l/min Small compact ejector with efficient eco nozzle technology, Schmalz - The Company
• Max. vacuum 85% air saving function, user-friendly display and optional
• Body made of plastic IO-Link technology. For use in dynamic processes in
confined spaces.
Vacuum Knowledge
Compact Ejectors SCPSb 542

• Suction capacity up to 67 l/min Small compact ejector with efficient eco nozzle technology Vacuum Suction Cups
• Max. vacuum 85% for processes in confined spaces.
• Body made of plastic

Special Grippers
Compact Ejectors SCPi / SMPi 548

• Suction capacity up to 185 l/min Lightweight, small compact ejector with integrated system
• Max. vacuum 85% monitoring, IO-Link, air-saving regulation and optional Vacuum Grip- ping Systems
power blow off for highly dynamic, efficient processes.

Compact Ejectors SCP / SMP 554
Mounting Elements

• Suction capacity up to 200 l/min Lightweight, small compact ejector with optional system
• Max. vacuum 85% monitoring and optional air-saving regulation for efficient
Vacuum Generators
• Body made of aluminum processes.

Compact Ejectors SCP-FS 555

Valve Technology
• Suction capacity up to 200 l/min Externally controlled compact ejector with optional system
• Max. vacuum 85% monitoring for control of pneumatic valves.
Switches and Monitoring
• Body made of aluminum

Compact Ejectors X-Pump 556
SXPi / SXMPi with IO-Link
Filters and
• Suction capacity up to 220 l/min High end compact ejector with IO-Link interface, Connections
• Max. vacuum 85% pressure monitoring and air saving function for
• Body made of plastic comprehensive energy and process control. Mainly
used in the automotive and sheet metal
industries.
Services
Compact Ejectors SEM-C 561

• Suction capacity up to 673 l/min Compact ejector with high suction rate and integrated
• Max. vacuum 85% system monitoring for handling of porous workpieces, Contact
• Body made of aluminum especially in systems with centralized vacuum generation.
• Multi-stage nozzle system

Index of Products
