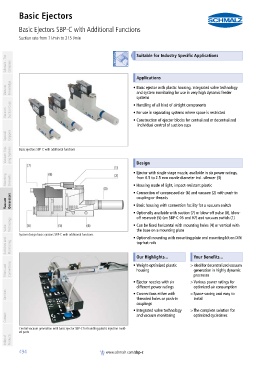

Basic Ejectors
Basic Ejectors SBP-C with Additional Functions
PA01019111_inh_EN.pdf Suction rate from 7 l/min to 215 l/min PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications
Vacuum Knowledge • Basic ejector with plastic housing, integrated valve technology
and system monitoring for use in very high dynamic feeder
systems

Vacuum Suction Cups • Handling of all kind of airtight components
• For use in separating systems where space is restricted
• Construction of ejector blocks for centralized or decentralized
individual control of suction cups
Special Grippers

Vacuum Grip- ping Systems Basic ejectors SBP-C with additional functions Design

container

• Ejector with single stage nozzle, available in six power ratings,
Mounting Elements • Housing made of light, impact-resistant plastic
from 0.5 to 2.5 mm nozzle diameter incl. silencer (3)

• Connection of compressed air (6) and vacuum (2) with push-in
coupling or threads
Vacuum Generators • Basic housing with connection facility for a vacuum switch

• Optionally available with suction (7) or blow-off pulse (8), blow-
off reservoir (5) (on SBP-C 05 and 07) and vacuum switch (1)
Valve Technology • Can be fixed horizontal with mounting holes (4) or vertical with
the base on a mounting plate
System design basic ejectors SBP-C with additional functions • Optional mounting with mounting plate and mounting kit on DIN
Switches and Monitoring top-hat rails

container
Our Highlights... Your Benefits...
Filters and Connections • Weight-optimized plastic >Ideal for decentralized vacuum
housing
generation in highly dynamic
processes
• Ejector nozzles with six >Various power ratings for
different power ratings optimized air consumption
Services • Connections either with >Space-saving and easy to
threaded holes or push-in
install
couplings
• Integrated valve technology >The complete solution for
Contact and vacuum monitoring optimized cycletimes

Central vacuum generation with basic ejector SBP-C for handling plastic injection mold-
ed parts
Index of Products

494 www.schmalz.com/sbp-c
