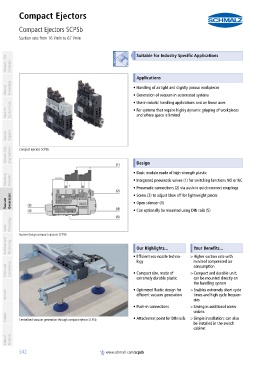

Page 542 - Schmalz - Vacuum Components

EN_Vakuum-Erzeuger.book Seite 542 Dienstag, 23. Februar 2016 4:01 16
PA01019111_inh_EN.pdf
Compact Ejectors
Compact Ejectors SCPSb
PA01019111_inh_EN.pdf Suction rate from 16 l/min to 67 l/min PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications
Vacuum Knowledge • Handling of airtight and slightly porous workpieces
• Generation of vacuum in automated systems

Vacuum Suction Cups • Use in robotic handling applications and on linear axes
• For systems that require highly dynamic gripping of workpieces
and where space is limited

Special Grippers

Vacuum Grip- ping Systems Compact ejectors SCPSb Design

container

• Basic module made of high-strength plastic
Mounting Elements • Integrated pneumatic valves (1) for switching functions NO or NC

• Pneumatic connections (2) via push-in quick-connect couplings
• Screw (3) to adjust blow off for lightweight pieces
Vacuum Generators • Open silencer (4)

• Can optionally be mounted using DIN rails (5)

Valve Technology

System design compact ejectors SCPSb
Switches and Monitoring container Our Highlights... Your Benefits...

• Efficient eco nozzle techno- >Higher suction rate with
logy
minimal compressed air
Filters and Connections • Compact size, made of >Compact and durable unit;
consumption
extremely durable plastic can be mounted directly on
the handling system

Services • Optimized fluidic design for >Enables extremely short cycle
efficient vacuum generation
times and high cycle frequen-
cies
• Push-in connections >Saving in additional screw
unions
Contact Centralized vacuum generation through compact ejector SCPSb • Attachment point for DIN rails >Simple installation; can also

be installed in the switch
cabinet
Index of Products

542 www.schmalz.com/scpsb
