Vacuum Pumps
Dry-Running Vacuum Pumps EVE-TR
PA01019111_inh_EN.pdf Suction rate from 2.3 m³/h to 244 m³/h PA01019111_inh_EN.pdf

container
Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

EVE-TR-T
Special Grippers
container

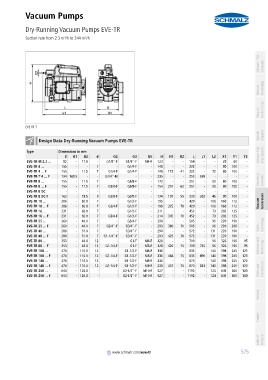

Design Data Dry-Running Vacuum Pumps EVE-TR

container
Type Dimensions in mm
B B1 B2 d G2 G3 G5 H H1 H2 L L1 L2 X1 Y1 Y2 Vacuum Grip- ping Systems
EVE-TR-M 2.3 ... 82 - 11.0 - G1/8"-F G1/8"-F M4-F 123 - - 154 - - 28 60 -
EVE-TR 4 ... 155 - - 7 - G1/4-F - 148 - - 222 - - 80 100 -
EVE-TR 4 ... F 155 - 11.5 7 G1/4-F G1/4-F - 148 172 41 222 - 72 80 100 -
EVE-TR-T 4 ... F 134 160.5 - - G1/4"-M - - 235 - - 255 269 - - - -
EVE-TR 8 ... 155 - 11.5 7 - G3/8-F - 172 - - 251 - 80 80 100 - Mounting Elements
EVE-TR 8 ... F 155 - 11.5 7 G3/8-F G3/8-F - 154 201 62 251 - 80 80 100 -
EVE-TR 8 DC - - - - - - - - - - - - - - - -
EVE-TR 8 DC F 163 - 18.5 9 G3/8-F G3/8-F - 134 197 55 230 302 46 80 100 -
EVE-TR 10 ... 206 - 60.0 7 - G1/2-F - 195 - - 429 - 106 160 112 - Vacuum Generators
EVE-TR 10 ... F 206 - 60.0 7 G3/4-F G1/2-F - 198 325 70 429 - 106 160 112 -
EVE-TR 16 ... 231 - 66.0 7 - G1/2-F - 211 - - 452 - 73 202 125 -
EVE-TR 16 ... F 231 - 66.0 7 G3/4-F G1/2-F - 214 345 70 452 - 73 202 125 -
EVE-TR 25 ... 260 - 40.0 7 - G3/4-F - 290 - - 505 - 96 220 190 -
EVE-TR 25 ... F 260 - 40.0 7 G3/4"-F G3/4"-F - 293 380 70 505 - 96 220 208 - Valve Technology
EVE-TR 40 ... 280 - 51.0 7 - G3/4"-F - 290 - - 572 - 131 220 190 -
EVE-TR 40 ... F 280 - 51.0 7 G1-1/4"-F G3/4"-F - 293 425 70 572 - 131 220 190 -
EVE-TR 80 ... 353 - 48.0 12 - G1-F M8-F 328 - - 709 - 96 326 190 95
EVE-TR 80 ... F 353 - 48.0 12 G1-1/4-F G1-F M8-F 328 420 75 709 745 96 326 190 95 Switches and Monitoring
EVE-TR 100 ... 470 - 110.0 12 - G1-1/2-F M8-F 336 - - 835 - 140 398 245 123
EVE-TR 100 ... F 470 - 110.0 12 G1-1/4-F G1-1/2-F M8-F 336 466 75 835 890 140 398 245 123
EVE-TR 140 ... 470 - 110.0 12 - G1-1/2-F M8-F 336 - - 873 - 140 398 245 123
EVE-TR 140 ... F 470 - 110.0 12 G1-1/4-F G1-1/2-F M8-F 336 437 75 873 851 140 398 245 123
EVE-TR 250 ... 644 - 126.0 - - G2-1/2"-F M10-F 527 - - 1192 - 124 645 360 180 Filters and Connections
EVE-TR 250 ... F 644 - 126.0 - - G2-1/2"-F M10-F 527 - - 1192 - 124 645 360 180
