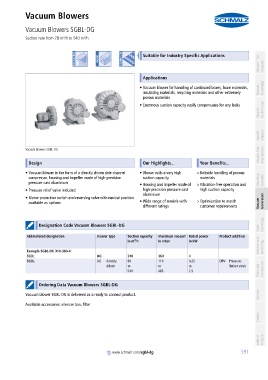

Vacuum Blowers
Vacuum Blowers SGBL-DG
PA01019111_inh_EN.pdf Suction rate from 78 m³/h to 540 m³/h PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Vacuum blower for handling of cardboard boxes, foam materials, Vacuum Knowledge
insulating materials, recycling materials and other extremely
porous materials
• Enormous suction capacity easily compensates for any leaks
Vacuum Suction Cups

Special Grippers

Vacuum Grip- ping Systems
Vacuum blowers SGBL-DG
container
Design Our Highlights... Your Benefits...

• Vacuum blower in the form of a directly driven side-channel • Blower with a very high >Reliable handling of porous
compressor, housing and impeller made of high-precision suction capacity materials Mounting
pressure-cast aluminium Elements
• Housing and impeller made of >Vibration-free operation and
• Pressure relief valve included high-precision pressure-cast high suction capacity
aluminium
• Motor-protection switch and reversing valve with neutral position
available as options • Wide range of models with >Optimization to match Vacuum Generators
different ratings customer requirements

container
Valve
Designation Code Vacuum Blowers SGBL-DG Technology
container
Abbreviated designation Blower type Suction capacity Maximum vacuum Rated power Product addition
Switches and Monitoring
3
in m /h in mbar in kW
Example SGBL-DG 310-360-4:
SGBL DG 310 360 4
SGBL DG directly 80 110 0.25 DBV Pressure-
Filters and Connections
driven to to to limiter valve
540 465 7.5

container
Ordering Data Vacuum Blowers SGBL-DG
Services
Vacuum blower SGBL-DG is delivered as a ready to connect product.
container
Available accessories: silencer box, filter

Contact

Index of Products

container
www.schmalz.com/sgbl-dg
