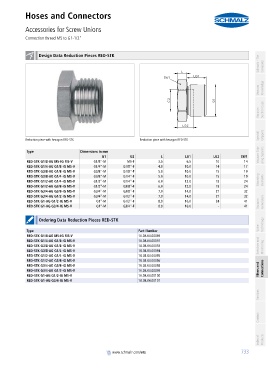

Page 733 - Schmalz - Vacuum Components

EN_Ventile.book Seite 733 Dienstag, 23. Februar 2016 4:14 16
PA01019111_inh_EN.pdf
Hoses and Connectors
Accessories for Screw Unions
PA01019111_inh_EN.pdf Connection thread M5 to G1-1/2" PA01019111_inh_EN.pdf

container

container Design Data Reduction Pieces RED-STK Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

Special Grippers
Reduction piece with hexagon RED-STK Reduction piece with hexagon RED-STK

container
Type Dimensions in mm
G1 G2 L LG1 LG2 SW1 Vacuum Grip- ping Systems
RED-STK G1/8-AG M5-IG MS-V G1/8"-M M5-F 3.5 6.5 10 14
RED-STK G1/4-AG G1/8-IG MS-V G1/4"-M G1/8"-F 4.0 10.0 14 17
RED-STK G3/8-AG G1/8-IG MS-V G3/8"-M G1/8"-F 5.0 10.0 15 19
RED-STK G3/8-AG G1/4-IG MS-V G3/8"-M G1/4"-F 5.0 10.0 15 19
RED-STK G1/2-AG G1/4-IG MS-V G1/2"-M G1/4"-F 6.0 12.0 18 24 Mounting Elements
RED-STK G1/2-AG G3/8-IG MS-V G1/2"-M G3/8"-F 6.0 12.0 18 24
RED-STK G3/4-AG G3/8-IG MS-V G3/4"-M G3/8"-F 7.0 14.0 21 32
RED-STK G3/4-AG G1/2-IG MS-V G3/4"-M G1/2"-F 7.0 14.0 21 32
RED-STK G1-AG G1/2-IG MS-V G1"-M G1/2"-F 8.0 16.0 24 41 Vacuum Generators
RED-STK G1-AG G3/4-IG MS-V G1"-M G3/4"-F 8.0 16.0 - 41

container
Ordering Data Reduction Pieces RED-STK
Valve Technology
container
Type Part Number
RED-STK G1/8-AG M5-IG MS-V 10.08.04.00089
RED-STK G1/4-AG G1/8-IG MS-V 10.08.04.00091
RED-STK G3/8-AG G1/8-IG MS-V 10.08.04.00093 Switches and Monitoring
RED-STK G3/8-AG G1/4-IG MS-V 10.08.04.00094
RED-STK G1/2-AG G1/4-IG MS-V 10.08.04.00095
RED-STK G1/2-AG G3/8-IG MS-V 10.08.04.00096
RED-STK G3/4-AG G3/8-IG MS-V 10.08.04.00098
RED-STK G3/4-AG G1/2-IG MS-V 10.08.04.00099 Filters and Connections
RED-STK G1-AG G1/2-IG MS-V 10.08.04.00100
RED-STK G1-AG G3/4-IG MS-V 10.08.04.00101
