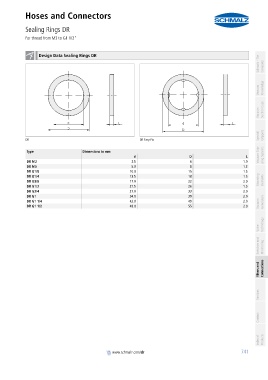

Hoses and Connectors
Sealing Rings DR
PA01019111_inh_EN.pdf For thread from M3 to G1 1/2" PA01019111_inh_EN.pdf

container

container Design Data Sealing Rings DR Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

Special Grippers
DR DR Easy-Fix

container
Type Dimensions in mm
d D L Vacuum Grip- ping Systems
DR M3 3.5 6 1.0
DR M5 5.0 8 1.2
DR G1/8 10.0 15 1.5
DR G1/4 13.5 18 1.5
DR G3/8 17.0 22 2.0 Mounting Elements
DR G1/2 21.5 26 1.5
DR G3/4 27.0 33 2.0
DR G1 34.0 39 2.0
DR G1 1/4 42.0 49 2.0 Vacuum Generators
DR G1 1/2 48.0 55 2.0

Valve Technology

Switches and Monitoring

Filters and Connections

Services

Contact

Index of Products

container
www.schmalz.com/dr
