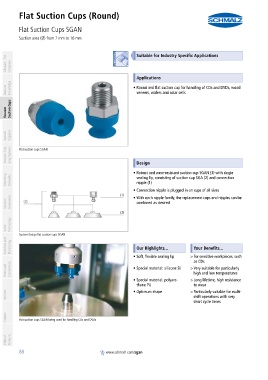

Flat Suction Cups (Round)
Flat Suction Cups SGAN
PA01019111_inh_EN.pdf Suction area (Ø) from 7 mm to 16 mm PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications
Vacuum Knowledge • Round and flat suction cup for handling of CDs and DVDs, wood
veneers, wafers and solar cells

Vacuum Suction Cups

Special Grippers

Vacuum Grip- ping Systems Flat suction cups SGAN Design

container

• Robust and wear-resistant suction cup SGAN (3) with single
Mounting Elements sealing lip, consisting of suction cup SGA (2) and connection
nipple (1)

• Connection nipple is plugged in on cups of all sizes
Vacuum Generators • With each nipple family, the replacement cups and nipples can be
combined as desired

Valve Technology

System design flat suction cups SGAN
Switches and Monitoring container Our Highlights... Your Benefits...

• Soft, flexible sealing lip >For sensitive workpieces, such
as CDs
Filters and Connections • Special material: silicone SI >Very suitable for particularly

high and low temperatures
• Special material: polyure- >Long lifetime, high resistance
thane PU to wear
Services • Optimum shape >Particularly suitable for multi-
shift operations with very
short cycle times

Contact Flat suction cups SGAN being used for handling CDs and DVDs

Index of Products

88 www.schmalz.com/sgan
