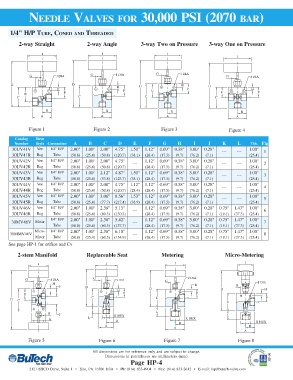

Page 4 - BuTech - High Pressure Valves and Fittings
P. 4
NEEDLE VALVES FOR 30,000 PSI (2070 BAR)
1/4" H/P TUBE, CONED AND THREADED
2-way Straight 2-way Angle 3-way Two on Pressure 3-way One on Pressure
I I I
I
G J DIA G J DIA
G J DIA G J DIA
D D H
H D D
H F E F H
F E F
E
C C C C
B B B B
A A A A
Figure 1 Figure 2 Figure 3 Figure 4
Catalog Stem
Number Style Connection A B C D E F G H I J K L Thk. Fig
30UV41V Vee 1/4" H/P 2.00" 1.00" 2.00" 4.75" 1.50" 1.12" 0.69" 0.38" 3.00" 0.28" 1.00"
--- --- 1
30UV41R Reg Tube (50.8) (25.4) (50.8) (120.7) (38.1) (28.4) (17.5) (9.7) (76.2) (7.1) (25.4)
30UV42V Vee 1/4" H/P 2.00" 1.00" 2.00" 4.75" 1.12" 0.69" 0.38" 3.00" 0.28" 1.00"
--- --- --- 2
30UV42R Reg Tube (50.8) (25.4) (50.8) (120.7) (28.4) (17.5) (9.7) (76.2) (7.1) (25.4)
30UV43V Vee 1/4" H/P 2.00" 1.00" 2.12" 4.87" 1.50" 1.12" 0.69" 0.38" 3.00" 0.28" 1.00"
--- --- 3
30UV43R Reg Tube (50.8) (25.4) (53.8) (123.7) (38.1) (28.4) (17.5) (9.7) (76.2) (7.1) (25.4)
30UV44V Vee 1/4" H/P 2.00" 1.00" 2.00" 4.75" 1.12" 1.12" 0.69" 0.38" 3.00" 0.28" 1.00"
--- --- 4
30UV44R Reg Tube (50.8) (25.4) (50.8) (120.7) (28.4) (28.4) (17.5) (9.7) (76.2) (7.1) (25.4)
30UV45V Vee 1/4" H/P 2.00" 1.00" 3.06" 8.56" 1.53" 1.12" 0.69" 0.38" 3.00" 0.28" 1.00"
--- --- 5
30UV45R Reg Tube (50.8) (25.4) (77.7) (217.4) (38.9) (28.4) (17.5) (9.7) (76.2) (7.1) (25.4)
30UV46V Vee 1/4" H/P 2.00" 1.00" 2.38" 5.13" 1.12" 0.69" 0.38" 3.00" 0.28" 0.75" 1.47" 1.00"
--- 6
30UV46R Reg Tube (50.8) (25.4) (60.5) (130.3) (28.4) (17.5) (9.7) (76.2) (7.1) (19.1) (37.3) (25.4)
1/4" H/P 2.00" 1.00" 2.38" 5.42" 1.12" 0.69" 0.38" 3.00" 0.28" 0.75" 1.47" 1.00"
30MV46V Meter --- 7
Tube (50.8) (25.4) (60.5) (137.7) (28.4) (17.5) (9.7) (76.2) (7.1) (19.1) (37.3) (25.4)
Micro- 1/4" H/P 2.00" 1.00" 2.38" 6.10" 1.12" 0.69" 0.38" 3.00" 0.28" 0.75" 1.47" 1.00"
30MMV46V --- 8
Meter Tube (50.8) (25.4) (60.5) (154.9) (28.4) (17.5) (9.7) (76.2) (7.1) (19.1) (37.3) (25.4)
See page HP-1 for orifice and Cv
2-stem Manifold Replaceable Seat Metering Micro-Metering
I I I I
G J DIA G J DIA J DIA
G
H H J DIA
F D G
H D D H
E F F
C C F
D C
C
L
B F L
L K HEX K HEX
A
B K HEX
B
A B
A
A
Figure 5 Figure 6 Figure 7 Figure 8
All dimensions are for reference only and are subject to change.
Dimensions in parentheses are millimeters (mm) HP-09
Page HP-4
2121 EBCO Drive, Suite 1 • Erie, PA 16506 USA • Ph: (814) 833-4904 • Fax: (814) 833-2612 • E-mail: hq@butech-valve.com
