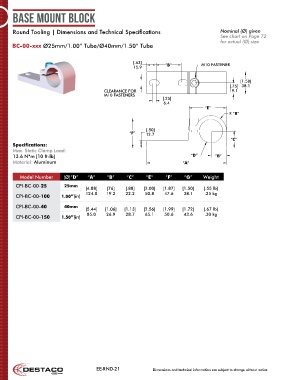

Base Mount Block

Round Tooling | Dimensions and Technical Specifications Nominal (Ø) given
See chart on Page 72
for actual (Ø) size
BC-00-xxx Ø25mm/1.00” Tube/Ø40mm/1.50” Tube

[.63] “B” M10 FASTENER
15.9

[1.50]
[.75] 38.1
CLEARANCE FOR 19.1
M10 FASTENERS
[.25]
6.4
“E”
R “B”

[.50]
“F” 12.7
“C”
Specifications:
Max. Static Clamp Load:
13.6 N*m [10 ft-lb] “D” “B”
Material: Aluminum “A”

Model Number (Ø)”D” “A” “B” “C” “E” “F” “G” Weight

CPI-BC-00-25 25mm
[4.88] [76] [.88] [2.00] [1.87] [1.50] [.55 lb]
124.0 19.2 22.2 50.8 47.6 38.1 .25 kg
CPI-BC-00-100 1.00”(in)
CPI-BC-00-40 40mm
[5.44] [1.06] [1.13] [2.56] [1.99] [1.72] [.67 lb]
85.0 26.9 28.7 65.1 50.6 43.6 .30 kg
CPI-BC-00-150 1.50”(in)

EE-RND-21 Dimensions and technical information are subject to change without notice
