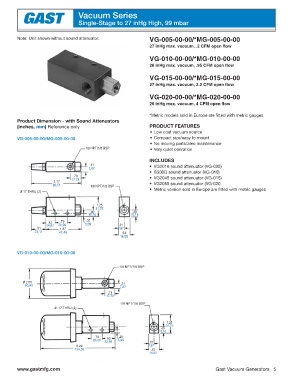

Page 5 - Gast Vacuum Generators

Vacuum Series
Single-Stage to 27 inHg High, 99 mbar

Note: Unit shown without sound attenuator. VG-005-00-00/*MG-005-00-00
27 inHg max. vacuum, .2 CFM open flow

VG-010-00-00/*MG-010-00-00
26 inHg max. vacuum, .95 CFM open flow

VG-015-00-00/*MG-015-00-00
27 inHg max. vacuum, 2.2 CFM open flow

VG-020-00-00/*MG-020-00-00
26 inHg max. vacuum, 4 CFM open flow

*Metric models sold in Europe are fitted with metric gauges
Product Dimension - with Sound Attenuators
(inches, mm) Reference only PRODUCT FEATURES
• Low cost vacuum source
VG-005-00-00/MG-005-00-00 • Compact size/easy to mount
• No moving parts/zero maintenance
1/8 NPT/1/8 BSP • Very quiet operation

INCLUDES
.31 • VG2016 sound attenuator (VG-005)
7,87
• B300Q sound attenuator (VG-010)
.70 • VG2045 sound attenuator (VG-015)
17.78
3.17 • VG2055 sound attenuator (VG-020
80,51 1/8 NPT/1/8 BSP
0.17 THRU (2) • Metric version sold in Europe are fitted with metric gauges

1.25
31,75
.40 .40
10,16 10,16
.20
.57 .79 5,08
14,47 20,06 .31
.91 1.87 7,87
23,11 47,49 .63
16,00

VG-010-00-00/MG-010-00-00

1/8 NPT/1/8 BSP

0 2.00 .31
50,80 7,87
.71
17,78
1/8 NPT/1/8 BSP
0 .17 THRU (2)

1.25
31,75
.40
10,16
.79 .20
.90
20,06 22,86 5,08 .31
5.29 7,87
134,36 .63
16,00
www.gastmfg.com Gast Vacuum Generators 5
