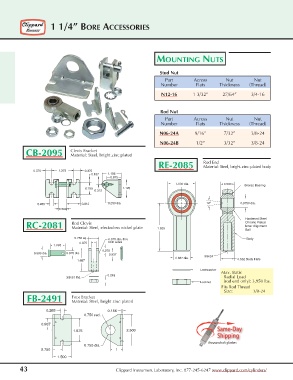

Page 43 - Clippard - Cylinders

1 1/4” BORE ACCESSORIES

MOUNTING NUTS

Stud Nut
Part Across Nut Nut
Number Flats Thickness (Thread)
N12-16 1 3/32” 27/64” 3/4-16

Rod Nut
Part Across Nut Nut
Number Flats Thickness (Thread)
N06-24A 9/16” 7/32” 3/8-24

N06-24B 1/2” 3/32” 3/8-24
CB-2095 Clevis Bracket
Material: Steel, bright zinc plated
RE-2085 Rod End
Material: Steel, bright zinc plated body
0.375 1.375 0.375
0.187 1.156
0.875
1.000 dia. 0.500 Bronze Bearing
0.750 1.125
0.312

0.265 0.812 0.250 dia. 0.3750 dia.
0.500

RC-2081 Rod Clevis 1.625
Material: Steel, electroless nickel plate

0.750 sq. 0.375 dia.-thru Body
0.375 both sides
1.093
0.375
0.500 dia. 0.375 dia.
0.937 3/8-24
0.687 dia.
1.687 0.562 Body Flats
Lockwasher
Max. Static
0.218
3/8-24 thd. Radial Load
Locknut (rod end only): 3,950 lbs.
Fits Rod Thread
Size: 3/8-24
FB-2491 Foot Bracket
Material: Steel, bright zinc plated
0.265 0.156
0.750 rad.
0.937
1.875 2.500 Same-Day
Shipping
thousands of cylinders
0.750 dia.
0.750 1
1.500
43 Clippard Instrument Laboratory, Inc. 877-245-6247 www.clippard.com/cylinders/
