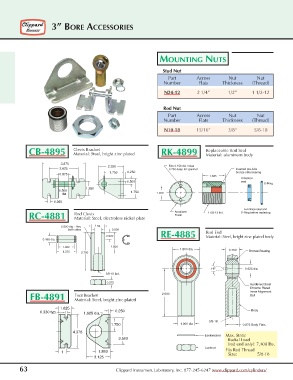

Page 63 - Clippard - Cylinders

3” BORE ACCESSORIES

MOUNTING NUTS

Stud Nut
Part Across Nut Nut
Number Flats Thickness (Thread)

N24-12 2 1/4” 1/2” 1 1/2-12

Rod Nut
Part Across Nut Nut
Number Flats Thickness (Thread)
N10-18 15/16” 3/8“ 5/8-18

CB-4895 Clevis Bracket RK-4899 Replaceable Rod Seal
Material: Steel, bright zinc plated
Material: aluminum body
3.875
2.250 Two 0.156 dia. holes
2.625 0.250 deep for spanner Inserted pre-lube
1.750 0.250 bronze oilite bearing
0.875
1.625
V-Section
0.500 seal
O-Ring
1.250
0.500 1.750
dia. 1.000
0.265
Lubricate seal and
Anodized 1 1/2-12 thd. O-Ring before replacing
RC-4881 Rod Clevis Finish
Material: Steel, electroless nickel plate
0.500 dia. - thru 1 sq.
both sides 0.505
RE-4885 Rod End
0.500 Material: Steel, bright zinc plated body
0.498 dia.
1.060 1.500
1.500 dia. 0.750
1.375 2.750 Bronze Bearing

0.625 dia.
5/8-18 thd.
0.375

FB-4891 Foot Bracket 2.500
Material: Steel, bright zinc plated
1.625
0.330 typ. 1.625 dia. 0.250 Body
5/8-18
1.750 1.000 dia 0.875 Body Flats
4.375
Lockwasher Max. Static
3.500 Radial Load
(rod end only): 7,400 lbs.
Locknut
1 1.890 Fits Rod Thread
Size: 5/8-18
3.125
63 Clippard Instrument Laboratory, Inc. 877-245-6247 www.clippard.com/cylinders/
