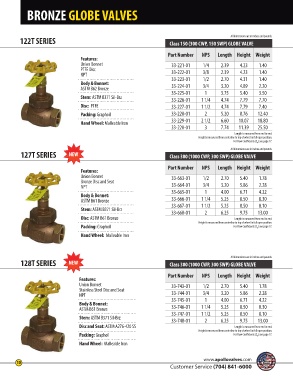

Page 10 - Apollo - Gate, Globe & Check Catalog

BRONZE GLOBE VALVES

All dimensions are in inches and pounds.
122T SERIES Class 150 (300 CWP, 150 SWP) GLOBE VALVE

Part Number NPS Length Height Weight
Features:
Union Bonnet 33-221-01 1/4 2.39 4.23 1.40
PTFE Disc
NPT 33-222-01 3/8 2.39 4.23 1.40
33-223-01 1/2 2.70 4.31 1.40
Body & Bonnet:
ASTM B62 Bronze 33-224-01 3/4 3.20 4.89 2.20
33-225-01 1 3.75 5.40 3.50
Stem: ASTM B371 Sil-Brz
33-226-01 1 1/4 4.74 7.79 7.70
Disc: PTFE 33-227-01 1 1/2 4.74 7.79 7.40
Packing: Graphoil 33-228-01 2 5.20 8.76 12.40
33-229-01 2 1/2 6.60 10.07 18.80
Hand Wheel: Malleable Iron
33-220-01 3 7.74 11.39 25.50
Length is measured from end to end.
Height is measured from centerline to top of wheel in full open position.
For Flow Coecients (C ) see page 17.
V
All dimensions are in inches and pounds.
127T SERIES Class 300 (1000 CWP, 300 SWP) GLOBE VALVE

Part Number NPS Length Height Weight
Features:
Union Bonnet 33-663-01 1/2 2.70 5.40 1.78
Bronze Disc and Seat
NPT 33-664-01 3/4 3.20 5.86 2.28
33-665-01 1 4.00 6.71 4.22
Body & Bonnet:
ASTM B61 Bronze 33-666-01 1 1/4 5.25 8.50 8.30
33-667-01 1 1/2 5.25 8.50 8.10
Stem: ASTM B371 Sil-Brz
33-668-01 2 6.25 9.75 13.00
Disc: ASTM B61 Bronze Length is measured from end to end.
Height is measured from centerline to top of wheel in full open position.
Packing: Graphoil For Flow Coecients (C ) see page 17.
V
Hand Wheel: Malleable Iron

All dimensions are in inches and pounds.
128T SERIES Class 300 (1000 CWP, 300 SWP) GLOBE VALVE

Part Number NPS Length Height Weight
Features:
Union Bonnet 33-743-01 1/2 2.70 5.40 1.78
Stainless Steel Disc and Seat
NPT 33-744-01 3/4 3.20 5.86 2.28
33-745-01 1 4.00 6.71 4.22
Body & Bonnet:
ASTM B61 Bronze 33-746-01 1 1/4 5.25 8.50 8.30
33-747-01 1 1/2 5.25 8.50 8.10
Stem: ASTM B371 Sil-Brz
33-748-01 2 6.25 9.75 13.00
Disc and Seat: ASTM A276-420 SS Length is measured from end to end.
Height is measured from centerline to top of wheel in full open position.
Packing: Graphoil For Flow Coecients (C ) see page 17.
V
Hand Wheel: Malleable Iron
