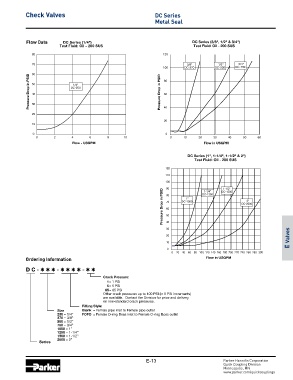

Page 207 - Parker - Quick Coupling Products

Check Valves DC Series
Metal Seal

Flow Data DC Series (1/4") DC Series (3/8", 1/2" & 3/4")
Test Fluid: Oil - 200 SUS Test Fluid: Oil - 200 SUS

80 120
70 3/8" 1/2" 3/4"
100 DC-370 DC-500 DC-750
60
Pressure Drop in PSID 50 DC-250 Pressure Drop in PSID 80
1/4"
40
60
30
20 40
20
10
0 0
0 2 4 6 8 1 0 0 10 20 30 40 50 60
Flow - USGPM Flow in USGPM

DC Series (1", 1-1/4", 1-1/2" & 2")
Test Fluid: Oil - 200 SUS
120
110
100
90 DC-1250 DC-1500
1-1/2"
Pressure Drop in PSID 70 DC-1000 DC-2000
1-1/4"
80
1"
2"
60
50
40
30
20 E Valves
10
0
0 20 40 60 80 100 120 140 160 180 200 220 240 260 280 300
Ordering Information Flow in USGPM
DC- QQQ - QQQQ - QQ

Crack Pressure:
1 = 1 PSI
5 = 5 PSI
65 = 65 PSI
Other crack pressures up to 100 PSI (in 5 PSI increments)
are available. Contact the Division for price and delivery
on non-standard crack pressures.
Fitting Style:
Size Blank = Female pipe inlet to Female pipe outlet
250 = 1/4” FOFO = Female O-ring Boss inlet to Female O-ring Boss outlet
370 = 3/8”
500 = 1/2”
750 = 3/4”
1000 = 1”
1250 = 1-1/4”
1500 = 1-1/2”
Series 2000 = 2”
