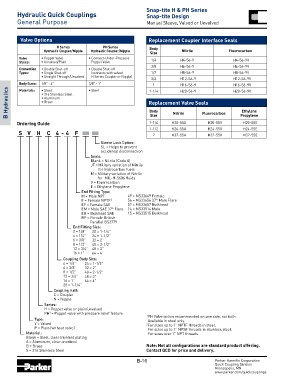

Page 63 - Parker - Quick Coupling Products

Snap-tite H & PH Series
Hydraulic Quick Couplings Snap-tite Design
General Purpose Manual Sleeve, Valved or Unvalved

Valve Options Replacement Coupler Interface Seals
H Series PH Series Body
Hydraulic Coupler/Nipple Hydraulic Coupler/Nipple Size Nitrile Fluorocarbon
Valve • Poppet Valve • Connect-Under-Pressure 1/4 H4-56-9 H4-56-9V
Styles: • Unvalved/Plain Poppet Valve
3/8 H6-56-9 H6-56-9V
Connection • Double Shut-off • Double Shut-off
Types: • Single Shut-off (connects with valved 1/2 H8-56-9 H8-56-9V
• Straight Through/Unvalved H Series Coupler or Nipple)
3/4 H12-56-9 H12-56-9V
Body Sizes: 1/8” - 4” 3/8” - 1” 1-1/4 H16-56-9 H16-56-9V
1
B Hydraulics • 316 Stainless Steel Replacement Valve Seals Ethylene
Materials:
• Steel
• Steel
H20-56-9V
H20-56-9
• Aluminum
• Brass
Body
Nitrile
Fluorocarbon
Size
H20-55E
Ordering Guide 1-1/4 H20-55A H20-55V Propylene
1-1/2 H24-55A H24-55V H24-55E
S V H C 4 - 4 F 2 H32-55A H32-55V H32-55E
Sleeve Lock Option:
SL = Helps to prevent
accidental disconnection
Seals:
Blank = Nitrile (Code A)
JF = Military variation of Nitrile
for hydrocarbon fuels
M = Military variation of Nitrile
for MIL-H-5606 fluids
V = Fluorocarbon
E = Ethylene Propylene
End Fitting Type:
M = Male NPT 49 = MS33649 Female
F = Female NPTF 2 56 = MS33656 37° Male Flare
EF = Female SAE 57 = MS33657 Bulkhead
EM = Male SAE 37° Flare 14 = MS33514 Male
EB = Bulkhead SAE 15 = MS33515 Bulkhead
RP = Female British
Parallel BS2779
End Fitting Size:
2 = 1/8" 20 = 1-1/4"
4 = 1/4" 24 = 1-1/2"
6 = 3/8" 32 = 2"
8 = 1/2" 40 = 2-1/2"
12 = 3/4" 48 = 3"
16 = 1" 64 = 4"
Coupling Body Size:
4 = 1/4" 24 = 1-1/2"
6 = 3/8" 32 = 2"
8 = 1/2" 40 = 2-1/2"
12 = 3/4" 48 = 3"
16 = 1" 64 = 4"
20 = 1-1/4"
Coupling Half:
C = Coupler
N = Nipple
Series:
H = Poppet valve or plain/unvalved
PH = Poppet valve with pressure relief feature
1
1 PH Valve option recommended on one side, not both.
Type: Available in steel only.
V = Valved 2 For sizes up to 1” NPTF threads in steel.
P = Plain (without valve) For sizes up to 1” NPSF threads in stainless steel.

Material: For sizes over 1” NPT threads.
Blank = Steel, clear trivalent plating
A = Aluminum, clear anodized
B = Brass Note: Not all configurations are standard product offering.
S = 316 Stainless Steel Contact QCD for price and delivery.
