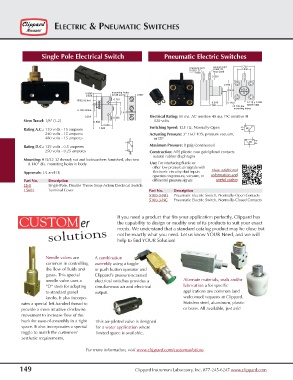

ELECTRIC & PNEUMATIC SWITCHES

Single Pole Electrical Switch Pneumatic Electric Switches

vacuum port 0.750
pressure port 0.062 I.D. 0.500
0.062 I.D. hose barb
hose barb
0.250
0.750
0.500 B A
0.656 mounting holes
0.406 for #6 screw 0.687
15/32-32 thd. 0.781
COMMON 0.110 x 0.020
0.328 0.140
0.796 spade lugs
NORMALLY 0.100 dia.
1 mounting holes
0.125 stroke OPEN
1.937
NORMALLY
CLOSED
0.250 0.468 Electrical Rating: 60 ma. AC resistive 40 ma. DC resistive @
Stem Travel: 1/8” (3.2) 0.562 120 volts
0.906
Rating A.C.: 120 volts - 15 amperes 1.562 Switching Speed: 125 Hz, Normally-Open NO
240 volts - 15 amperes Actuating Pressure: 3” H2O 10% pressure vacuum,
480 volts - 15 amperes or DP
NC
Rating D.C.: 125 volts - 0.5 amperes Maximum Pressure: 8 psig (continuous)
250 volts - 0.25 amperes Construction: ABS plastic case gold plated contacts
natural rubber diaphragm
Mounting: #15/32-32 thread; nut and lockwashers furnished, also two
0.140” dia. mounting holes in body Use: For interfacing fluidic or
other low pressure air signals with
Approvals: UL and CE Electronic circuitry dual inputs View additional
operates on pressure, vacuum, or information and
Part No. Description differential pressure signals useful videos
ES-1 Single Pole, Double Throw Snap-Action Electrical Switch
15601 Terminal Cover Part No. Description
5100-3-NO Pneumatic Electric Switch, Normally-Open Contacts
5100-3-NC Pneumatic Electric Switch, Normally-Closed Contacts
If you need a product that fits your application perfectly, Clippard has
CUSTOMer the capability to design or modify one of its products to suit your exact
needs. We understand that a standard catalog product may be close but
solutions not be exactly what you need. Let us know YOUR Need, and we will
help to find YOUR Solution!

Needle valves are A combination
common in controlling assembly using a toggle
the flow of fluids and or push button operator and
gases. This special Clippard’s pressure-actuated
needle valve uses a electrical switches provides a Alternate materials, seals and/or
“D” stem for adapting simultaneous air and electrical lubrication a for specific
to standard panel output. applications are common (and
knobs. It also incorpo- welcomed) requests at Clippard.
rates a special left-handed thread to Stainless steel, aluminum, plastic
provide a more intuitive clockwise or brass. All available, just ask!
movement to increase flow of the
back for ease-of-assembly in a tight This air-piloted valve is designed
space. It also incorporates a special for a water application where
toggle to match the customers’ limited space is available.
aesthetic requirements.

For more information, visit www.clippard.com/customsolutions
