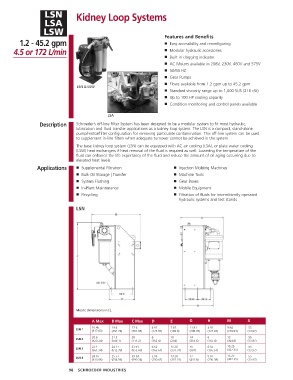

LSN Kidney Loop Systems

LSA
LSW
Features and Benefits
1.2 - 45.2 gpm ■ Easy accessibility and reconfiguring
4.5 or 172 L/min ■ Modular hydraulic accessories
■ Built in clogging indicator
■ AC Motors available in 208V, 230V, 460V and 575V
■ 50/60 HZ
■ Gear Pumps
■ Flows available from 1.2 gpm up to 45.2 gpm
LSN & LSW
■ Standard viscosity range up to 1,000 SUS (216 cSt)
■ Up to 100 HP cooling capacity
■ Condition monitoring and control panels available

LSA
Description Schroeder’s off-line Filter System has been designed to be a modular system to fit most hydraulic,
lubrication and fluid transfer applications as a kidney loop system. The LSN is a compact, stand-alone
pump/motor/filter configuration for removing particulate contamination. This off-line system can be used
to supplement in-line filters when adequate turnover cannot be achieved in the system.
The base kidney loop system (LSN) can be equipped with AC air cooling (LSA), or plate water cooling
(LSW) heat exchangers if heat removal of the fluid is required as well. Lowering the temperature of the
fluid can enhance the life expectancy of the fluid and reduce the amount of oil aging occurring due to
elevated heat levels.
Applications ■ Supplemental Filtration ■ Injection Molding Machines
■ Bulk Oil Storage | Transfer ■ Machine Tools
■ System Flushing ■ Gear Boxes
■ In-Plant Maintenance ■ Mobile Equipment
■ Recycling ■ Filtration of fluids for intermittently operated
hydraulic systems and test stands

LSN

Metric di men sions in ( ).

A Max B Max C Max D E G H M X
16.45 19.4 27.6 4.92 7.87 11.81 4.92 9.84 .55
LSN 1
(417.83) (492.76) (701.04) (124.97) (199.9) (299.97) (124.97) (249.94) (13.97)
20.6 21.5 28 6 10 14 6 12 .55
LSN 2
(523.24) (546.1) (711.2) (152.4) (254) (355.6) (152.4) (304.8) (13.97)
22.1 24.11 33.61 6.52 13.28 15 6.52 15.25 .55
LSN 3
(561.34) (612.39) (853.69) (165.61) (337.31) (381) (165.61) (387.35) (13.97)
24.16 25.77 39.34 5.93 13.28 17 9.07 15.25 .55
LSN 4
(613.66) (654.56) (999.24) (150.62) (337.31) (431.8) (230.38) (387.35) (13.97)
