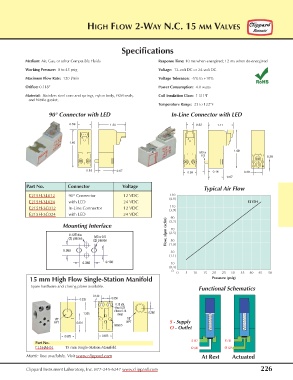

HIGH FLOW 2-WAY N.C. 15 MM VALVES

Specifications

Medium: Air, Gas, or other Compatible Fluids Response Time: 10 ms when energized; 12 ms when de-energized
Working Pressure: 0 to 43 psig Voltage: 12-volt DC or 24-volt DC
Maximum Flow Rate: 120 l/min Voltage Tolerance: -5% to +10%
RoHS
Orifice: 0.118” Power Consumption: 4.0 watts
Material: Stainless steel core and springs, nylon body, FKM seals, Coil Insulation Class: F 311°F
and Nitrile gasket.
Temperature Range: 23 to 122°F
90° Connector with LED In-Line Connector with LED

0.59 1.20 0.32 1.11

1.65
1.68
M3 x
0.5 0.28

0.16 0.67 0.16
0.59 0.38
0.67
Part No. Connector Voltage
Typical Air Flow
E215H-3L012 90° Connector 12 VDC 130
(4.6)
E215H-3L024 with LED 24 VDC E215H
110
E215H-3C012 In-Line Connector 12 VDC (3.9)
E215H-3C024 with LED 24 VDC 90
Flow, slpm (scfm) (2.5)
Mounting Interface (3.2)
70
0.125 dia
(2) places M3 x 0.5
50
(2) places (1.8)
0.260 30
(1.1)
0.382 0.130 10
(0.4)
0
0 5 10 15 20 25 30 35 40 45 50
15 mm High Flow Single-Station Manifold Pressure (psig)
Spare hardware and closing plates available.
Functional Schematics
0.140
0.335 0.350
0.13 dia.
thru 0.23
c’bore 0.14
1.325 deep 1 0.292
1/8” 2 1/8”
NPT 0.831 NPT S - Supply
M3x0.5
O - Outlet
0.625 0.625
S (1) S (1)
Part No.
E15HM-01 15 mm Single-Station Manifold O (2) O (2)
Metric line available. Visit www.clippard.com At Rest Actuated
