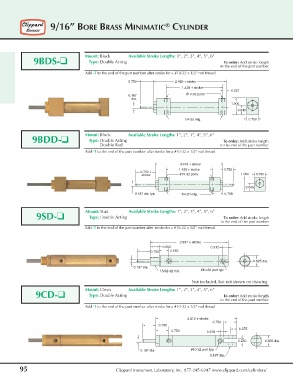

9/16” BORE BRASS MINIMATIC CYLINDER

Mount: Block Available Stroke Lengths: 1”, 2”, 3”, 4”, 5”, 6”
9BDS-❑ Type: Double Acting To order: Add stroke length
to the end of the part number
Add -T to the end of the part number after stroke for a #10-32 x 1/2” rod thread
0.750 2.469 + stroke
1.428 + stroke
0.227
#10-32 ports
0.187
dia.
1.000
0.545

1/4-20 mtg. 0.750

Mount: Block Available Stroke Lengths: 1”, 2”, 3”, 4”, 5”, 6”
9BDD-❑ Type: Double Acting To order: Add stroke length
Double Rod to the end of the part number
Add -T to the end of the part number after stroke for a #10-32 x 1/2” rod thread

3.015 + stroke
1.428 + stroke 0.750
0.750 +
stroke #10-32 ports 1.000 0.750
0.545
0.187 dia. typ. 1/4-20 mtg. 0.768

Mount: Stud Available Stroke Lengths: 1”, 2”, 3”, 4”, 5”, 6”
9SD-❑ Type: Double Acting To order: Add stroke length
to the end of the part number
Add -T to the end of the part number after stroke for a #10-32 x 1/2” rod thread

2.937 + stroke
0.500 0.312
0.750 0.562

0.625 dia.
0.187 dia.
15/32-32 thd. #10-32 port typ.

Nut included, but not shown on drawing
Mount: Clevis Available Stroke Lengths: 1”, 2”, 3”, 4”, 5”, 6”
9CD-❑ Type: Double Acting To order: Add stroke length
to the end of the part number
Add -T to the end of the part number after stroke for a #10-32 x 1/2” rod thread

3.312 + stroke
0.750
0.750
0.375
0.750 0.218
0.250 0.625 dia.

0.187 dia. #10-32 port typ.
0.187 dia.

95 Clippard Instrument Laboratory, Inc. 877-245-6247 www.clippard.com/cylinders/
