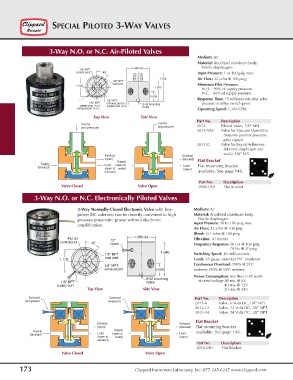

SPECIAL PILOTED 3-WAY VALVES

3-Way N.O. or N.C. Air-Piloted Valves
Medium: Air
Material: Anodized aluminum body,
1.359 dia. Nitrile diaphragms
1/8" NPT
control port Input Pressure: 1 to 100 psig max.
1.703 Air Flow: 22 scfm @ 100 psig;
1/8" NPT
load port Minimum Pilot Pressure:
1.109
1.203
N.O. - 90% of supply pressure
N.C. - 60% of supply pressure
0.609
1/8" NPT Response Time: 15 milliseconds after pilot
1/8" NPT exhaust port (n.c.) pressure reaches switch point
supply port (n.c.) supply port (n.o.)
exhaust port (n.o.) Operating Speed: 1,100 CPM
Top View Side View
Part No. Description
Control Control 2012 Piloted Valve, 1/8” NPT
(w/o pressure) (w/pressure)
2012-VAC Valve for Vacuum Operation
(requires positive pressure
pilot signal)
2012-G Valve for Liquid Adhesives
(silicone diaphragm and
seals), 1/8” NPT
Exhaust Exhaust
(open) (blocked)
Supply Flat Bracket
Supply Load (open to
(blocked) (open to outlet) Load Flat mounting bracket
(open)
exhaust) available. See page 146.
Part No. Description
Valve Closed Valve Open 2010-050 Flat Bracket
3-Way N.O. or N.C. Electronically Piloted Valves
3-Way Normally-Closed Electronic Valve with low- Medium: Air
power DC solenoid can be directly converted to high Material: Anodized aluminum body,
pressure pneumatic power without electronic Nitrile diaphragms
amplification. Input Pressure: 30 to 100 psig max.
Air Flow: 22 scfm @ 100 psig
Bleed: 0.1 scfm @ 100 psig
1.359 dia.
#10-32 12" Filtration: 10 micron
control port
leads Frequency Response: 50 Hz @ 100 psig
70 Hz @ 30 psig
1.640
1/8" NPT Switching Speed: 10 milliseconds
load port
1.109 Leads: 28 gauge stranded PVC insulated
Continuous Overload: 350% @ 25˚C
1/8" NPT
exhaust port 0.609 ambient; 250% @ 50°C ambient
Power Consumption: less than 0.50 watts
at rated voltage 80 ma. @ 6V
1/8" NPT
supply port 40 ma. @ 12V
Top View Side View 20 ma. @ 24V
Solenoid Solenoid Part No. Description
(w/o power) (w/power)
2013-6 Valve, 6 Volts DC, 1/8” NPT
2013-12 Valve, 12 Volts DC, 1/8” NPT
2013-24 Valve, 24 Volts DC, 1/8” NPT
Flat Bracket
Exhaust Exhaust
(open) (blocked) Flat mounting bracket
Supply Supply available. See page 146.
(blocked) Load (open to Load
(open to outlet) (open)
exhaust)
Part No. Description
2010-050 Flat Bracket
Valve Closed Valve Open

173 Clippard Instrument Laboratory, Inc. 877-245-6247 www.clippard.com
